Fuel Level Sensor Connector End View
Fuel Level Sensor Connector End View

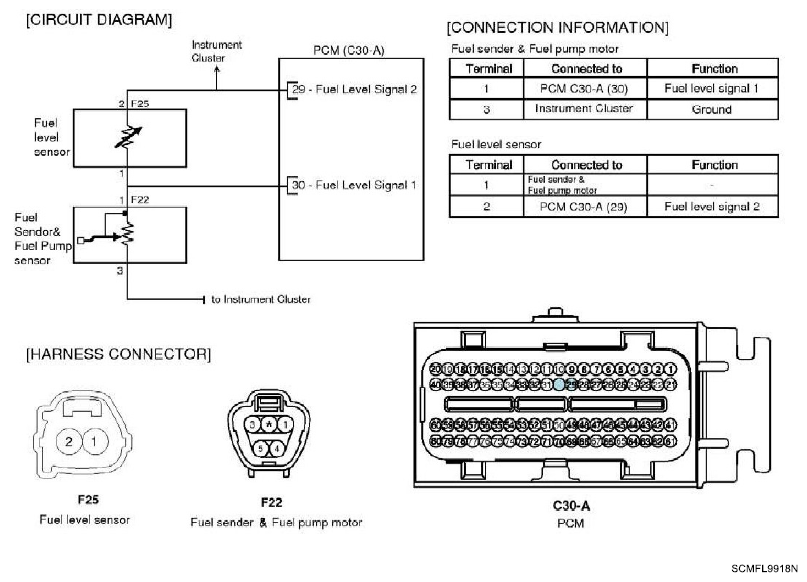

Fig 1: Fuel Level Sensor Connector End View
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
