Home › Hyundai › 2009 › Santa Fe GLS, AWD › Repair and Diagnosis › Electrical › Body Electrical › OEM Connector End Views › Connector End Views › Knock Sensor Connector End View

Knock Sensor Connector End View

Fig 1: Knock Sensor Connector End View
G06217958Courtesy of HYUNDAI MOTOR AMERICA

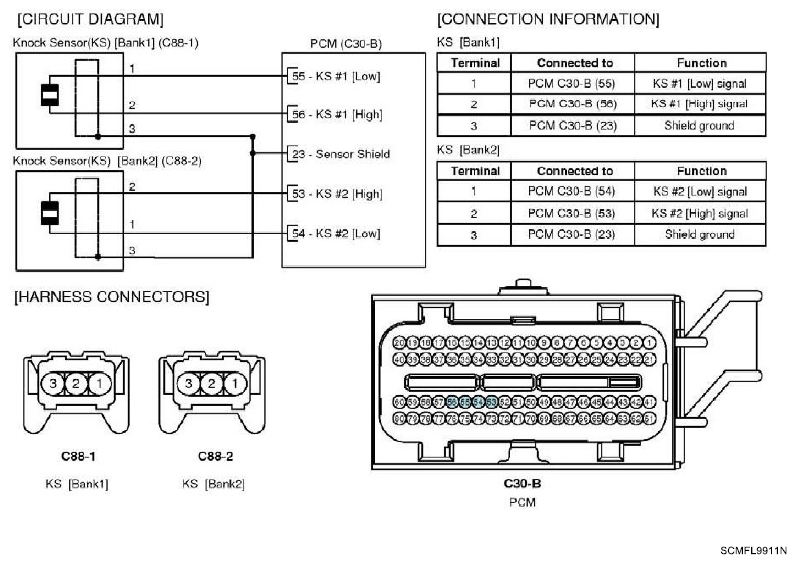

Fig 1: Knock Sensor Connector End View
G06216922Courtesy of HYUNDAI MOTOR AMERICA
