Hyundai
›
2009
›
Santa Fe GLS, AWD
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM Connector End Views
›
Connector End Views
›
Oil Temperature Sensor Connector End View
Oil Temperature Sensor Connector End View

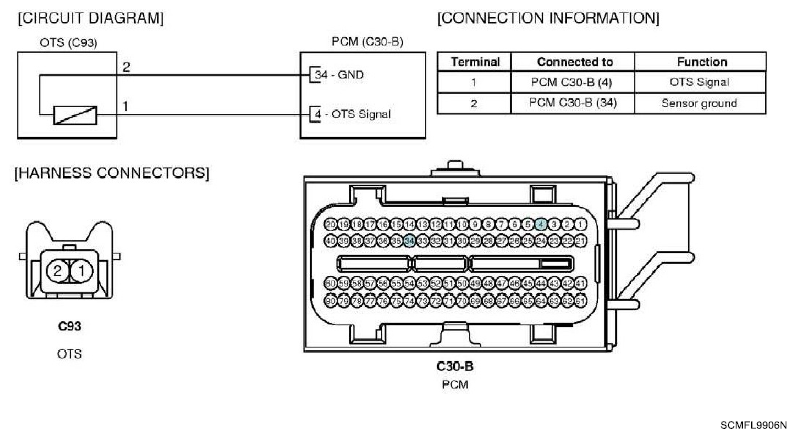

Fig 1: Oil Temperature Sensor Connector End View
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
