Evaporative And ORVR Emission Control System: Components

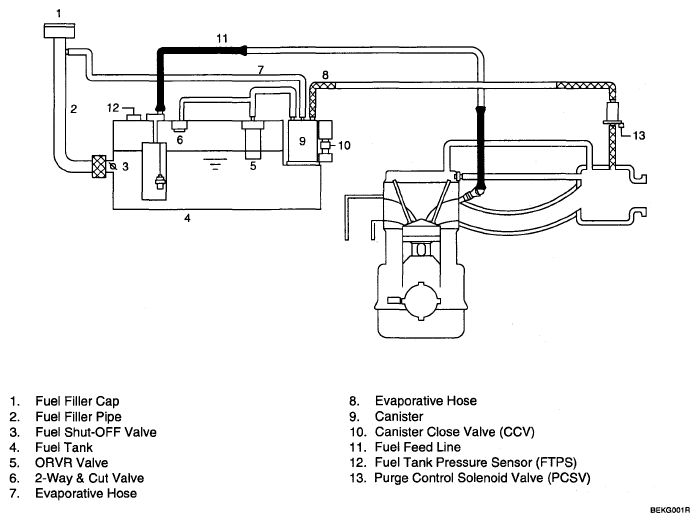

Fig 1: Evaporative And Emission Control System Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
