Components Location

[2.7 V6]

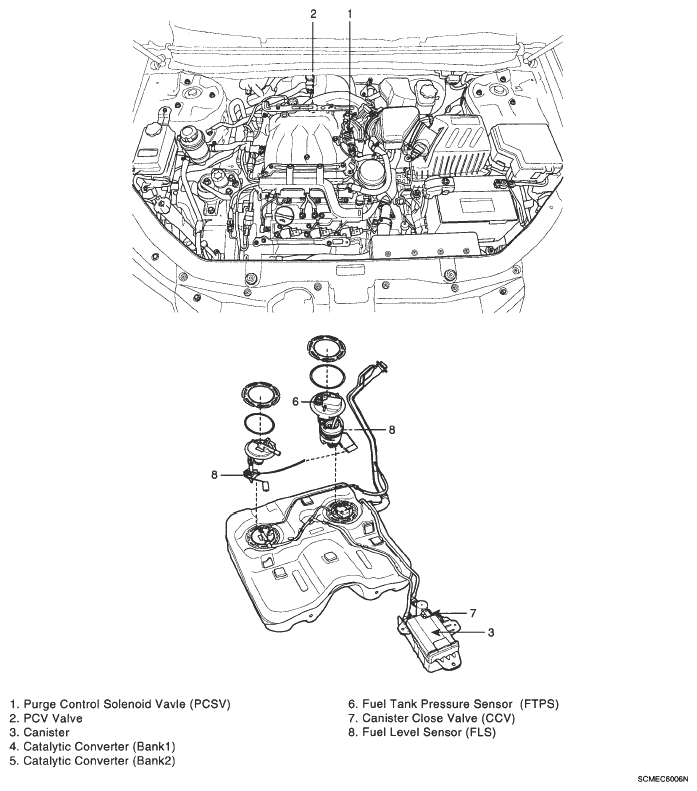

Fig 1: Identifying Emissions Control System Part Location - (2.7 V6)

Courtesy of HYUNDAI MOTOR CO.

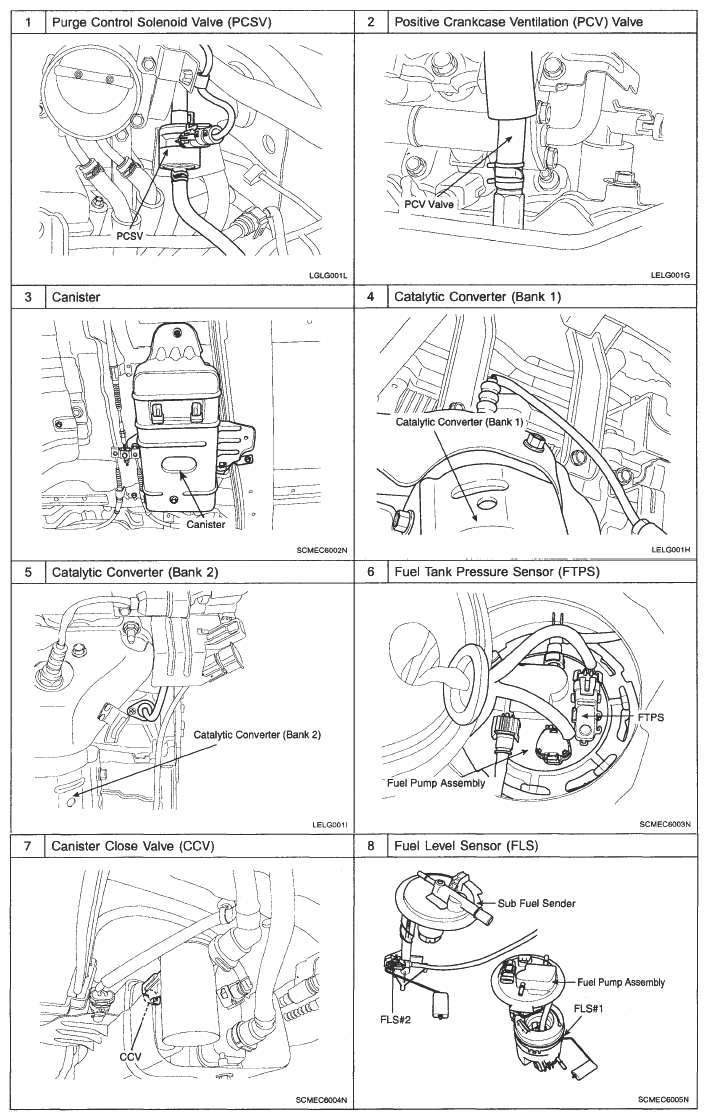

Fig 2: Identifying Emissions Control System Part Location - (2.7 V6)

Courtesy of HYUNDAI MOTOR CO.

[3.3 V6]

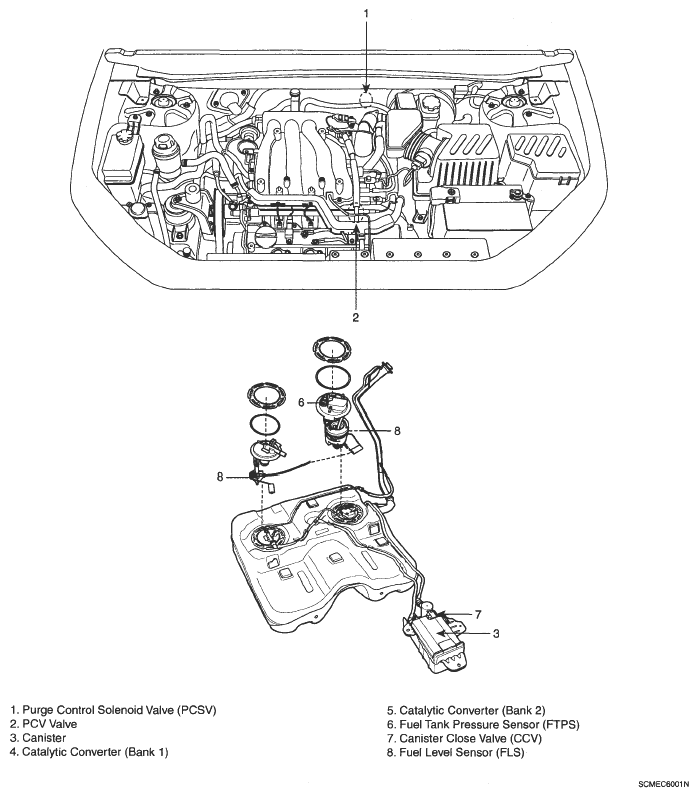

Fig 3: Identifying Emissions Control System Part Location - (3.3 V6)

Courtesy of HYUNDAI MOTOR CO.

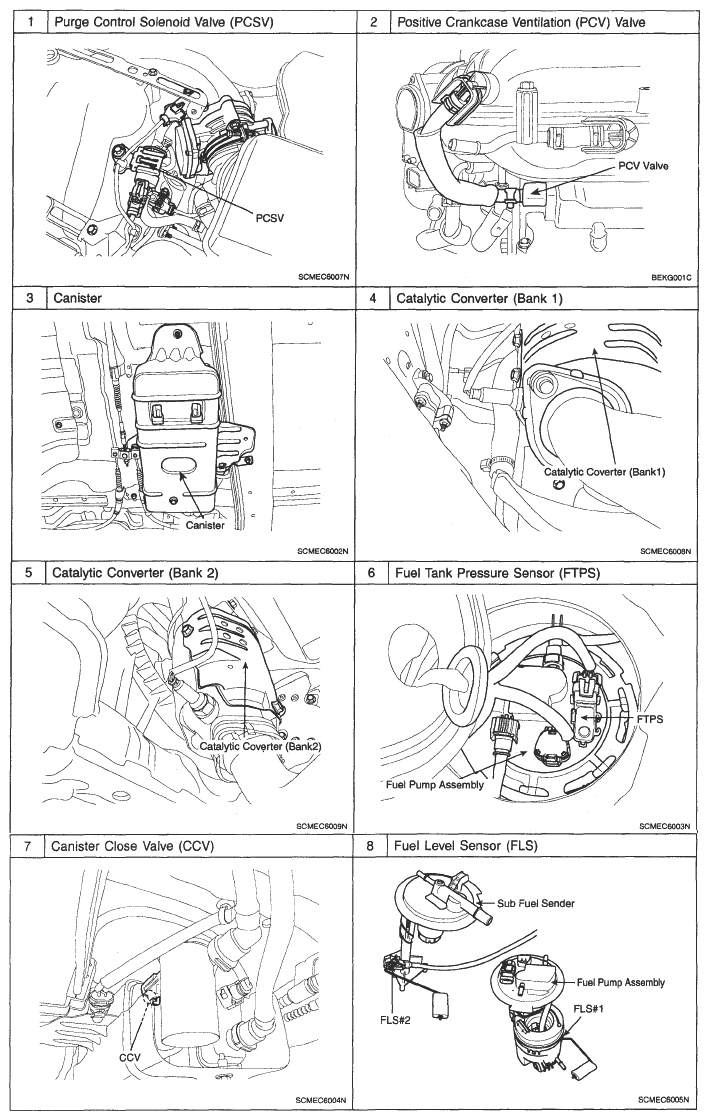

Fig 4: Identifying Emissions Control System Part Location - (3.3 V6)

Courtesy of HYUNDAI MOTOR CO.
