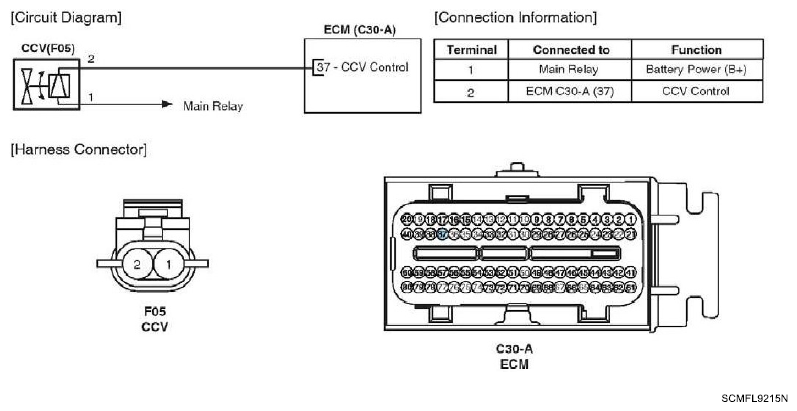

Home › Hyundai › 2009 › Santa Fe GLS, AWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System (Fuel System (2.7)) › Canister Close Valve (CCV) › Circuit Diagram
