Hyundai
›
2009
›
Santa Fe GLS, AWD
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System (Fuel System (2.7))
›
Fuel Tank Pressure Sensor (FTPS)
›
Circuit Diagram
Circuit Diagram

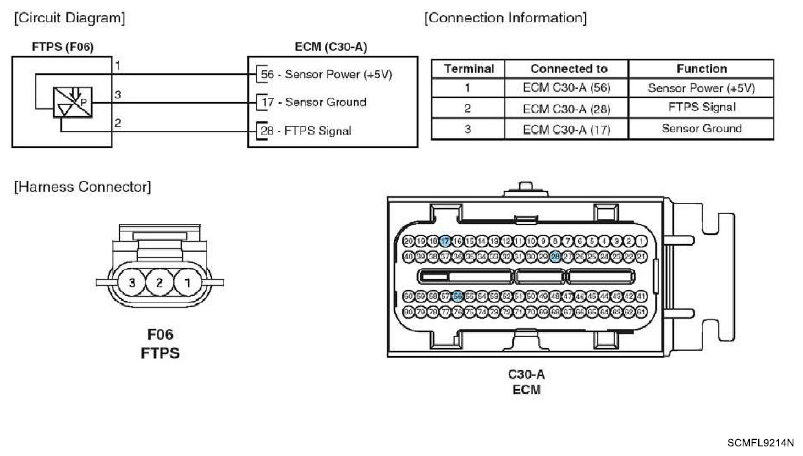

Fig 1: Fuel Tank Pressure Sensor - Circuit Diagram
