Driver Airbag (DAB) Module and Clock Spring: Components

CAUTION: Never attempt to measure the circuit resistance of the airbag module (squib) even if you are using the specified tester. If the circuit resistance is measured with a tester, accidental airbag deployment will result in serious personal injury.

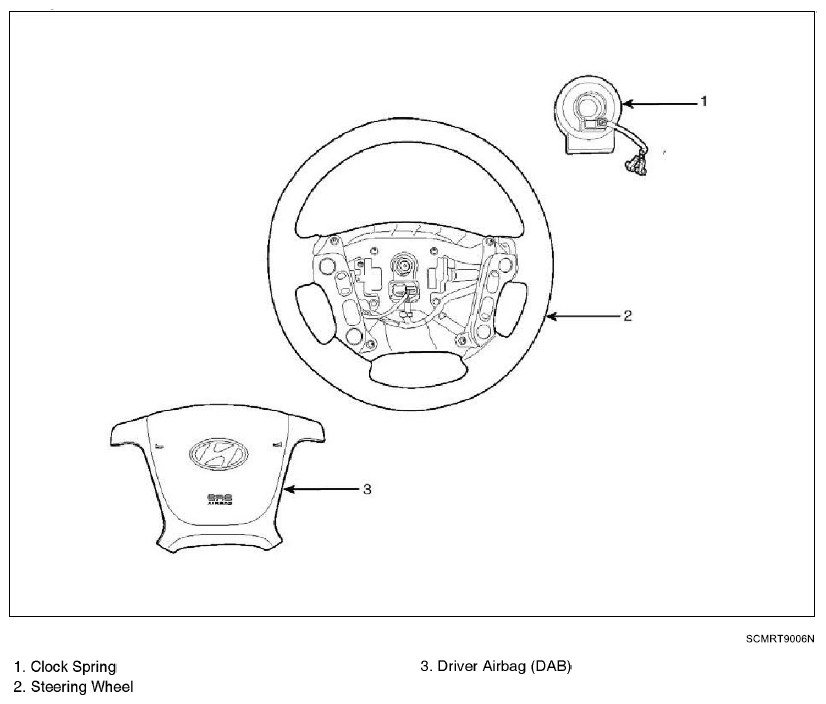

Fig 1: Identifying Driver Airbag (DAB) Module And Clock Spring
G06217848Courtesy of HYUNDAI MOTOR CO.
