Driver Airbag (DAB) Module and Clock Spring: Removal

1. Disconnect the battery negative cable and wait for at least three minutes before beginning work.
2. Remove the airbag module mounting bolts(2EA).

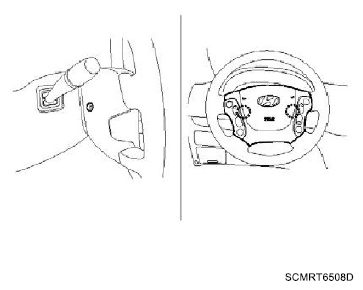

   Fig 1: Identifying Airbag Module Mounting Bolts (2EA)

   Courtesy of HYUNDAI MOTOR CO.
3. Disconnect the horn connector(A).

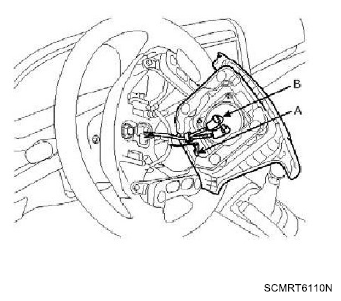

   Fig 2: Identifying Horn And Driver Airbag Module Connector

   Courtesy of HYUNDAI MOTOR CO.
4. Release the connector locking pin, then disconnect the driver airbag module connector(B).
   CAUTION: The removed airbag module should be stored in a clean, dry place with the pad cover face up.
5. Remove the steering wheel and steering wheel column cover. (Refer to STEERING COLUMN / SHAFT )
6. Disconnect the clock spring and horn connector, then remove the clock spring.

Fig 3: Identifying Clock Spring Connector

Courtesy of HYUNDAI MOTOR CO.
