Spring-loaded Lock Connector: Connecting

1. To reconnect, hold the pawl-side connector half, and press on the back of the sleeve-side connector half in the direction shown. As the two connector halves are pressed together, the sleeve (A) is pushed back by the pawl (C). Do not touch the sleeve.

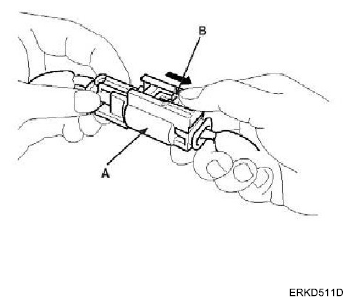

   Fig 1: Connecting Sleeve-Side Connector

   Courtesy of HYUNDAI MOTOR CO.
2. When the connector halves are completely connected, the pawl is released, and the spring-loaded sleeve locks the connector.

Fig 2: Identifying Spring-Loaded Sleeve Locks Connector

Courtesy of HYUNDAI MOTOR CO.
