Shift Lever: Inspection

Adjusting method for the control cable

1. Set room side lever and T/M side lever (A) to "N" position.
2. Connect the room side lever and shift cable. (See 'INSTALLATION ')
3. Connect the T/M side lever (A) to cable (B) in this following order.
   1. Push the cable (B) lightly to "F" direction shown to eliminate FREE PLAY of the cable (B).
   2. Tighten the adjusting nut (C).

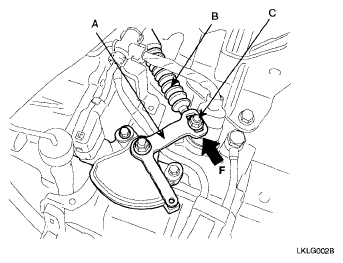

      Fig 1: Identifying Push Cable Adjusting Nut

      Courtesy of HYUNDAI MOTOR CO.
4. After adjusting the cable (B) according to (2)-(4), check to be sure that this part operates surely at each range of T/M side corresponding to each position of room lever.
