Automatic Transaxle System
›
Automatic Transaxle System Components Location
Automatic Transaxle System Components Location

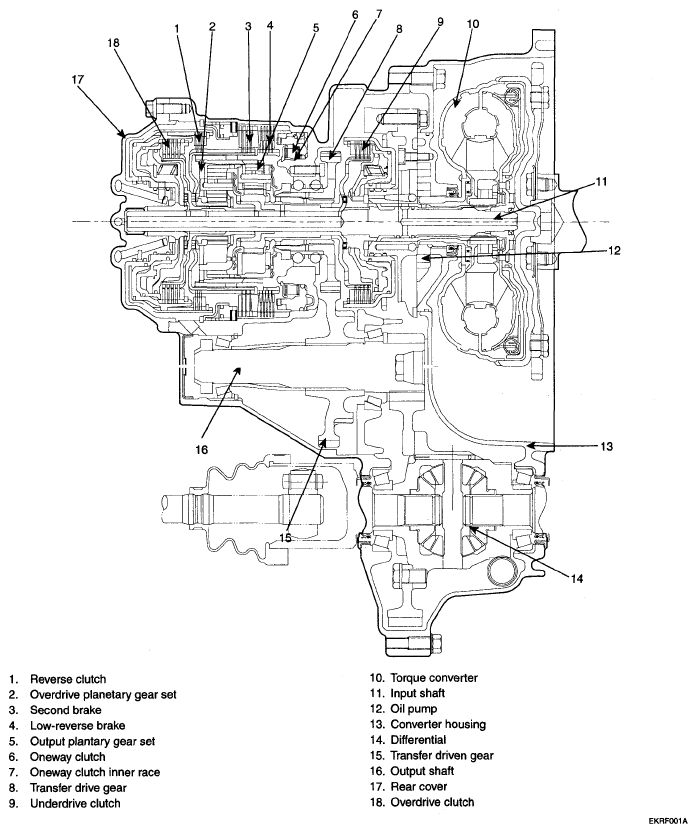

Fig 1: Identifying Automatic Transaxle System Components Location
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
