Power Windows: Troubleshooting

  1. No windows operate from the main switch on the driver's door.
    Fig 1: Power Windows Troubleshooting Procedure Chart (No Windows Operate)
    G05353409Courtesy of HYUNDAI MOTOR CO.
  2. Driver's side window does not operate.

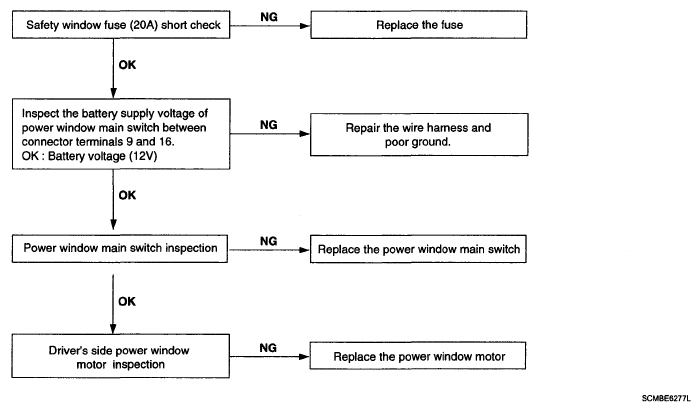

    Fig 2: Power Windows Troubleshooting Procedure Chart (Driver's Side Window Not Operate)
    G05353410Courtesy of HYUNDAI MOTOR CO.
  3. Passenger's side window does not operate.

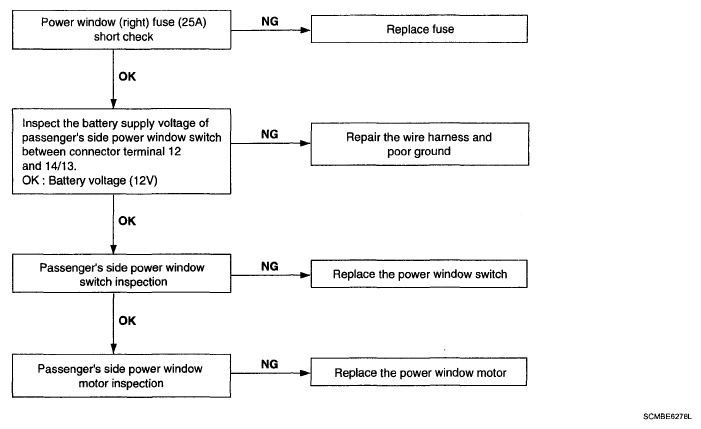

    Fig 3: Power Windows Troubleshooting Procedure Chart (Passenger's Side Window Not Operate)
    G05353411Courtesy of HYUNDAI MOTOR CO.
