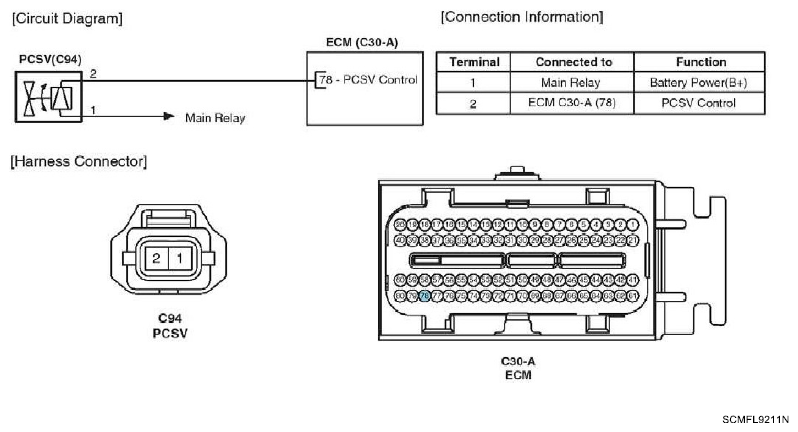

Home › Hyundai › 2009 › Santa Fe GLS, FWD, Automatic › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System (Fuel System (2.7)) › Purge Control Solenoid Valve (PCSV) › Circuit Diagram
