Santa Fe Limited, AWD
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System (Fuel System (3.3L))
›
Mass Air Flow Sensor (MAFS)
›
Circuit Diagram
Circuit Diagram

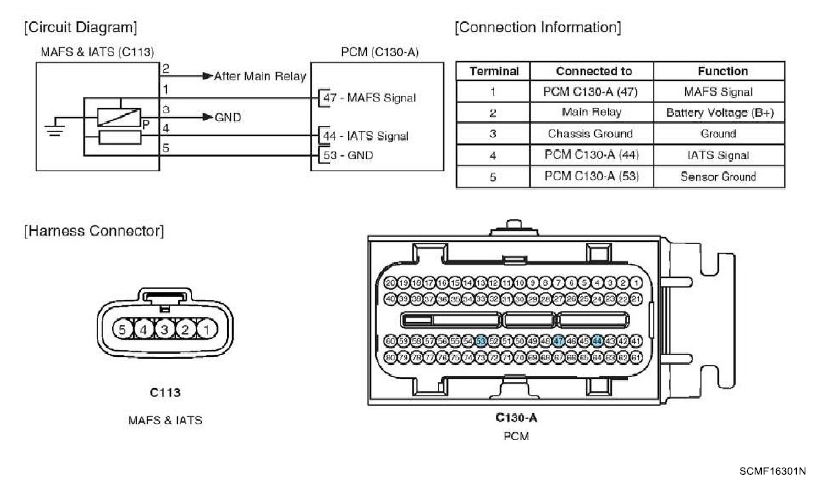

Fig 1: Mass Air Flow Sensor Connector Terminals With Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
