Purge Control Solenoid Valve (PCSV)
›
Circuit Diagram
Circuit Diagram

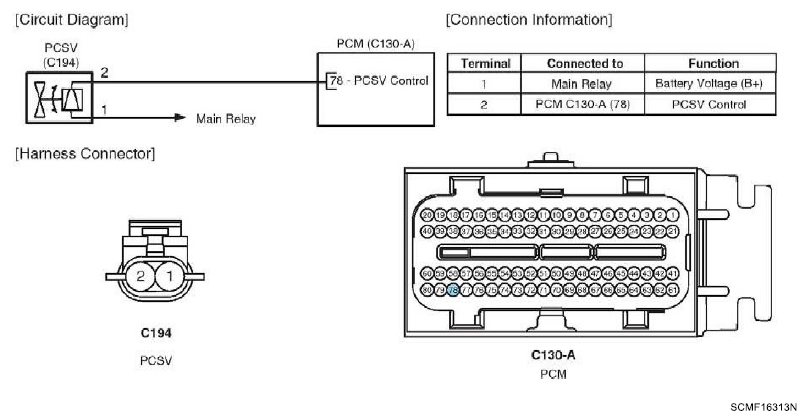

Fig 1: Purge Control Solenoid Valve Circuit Diagram With Connector Terminals
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
