Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System (Fuel System (3.3L))
›
CVVT Oil Temperature Sensor (OTS)
›
Circuit Diagram
Circuit Diagram

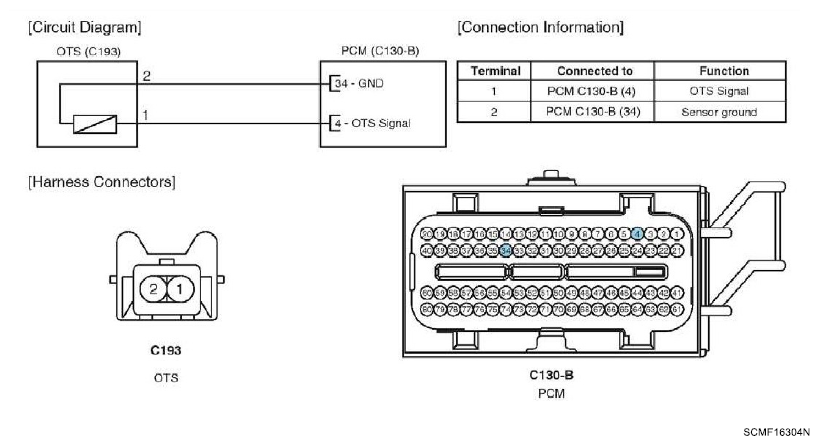

Fig 1: CVVT Oil Temperature Sensor Circuit Diagram With Connector Terminals
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
