Engine Control System (Fuel System (3.3L))
›
Canister Close Valve (CCV)
›
Circuit Diagram
Circuit Diagram

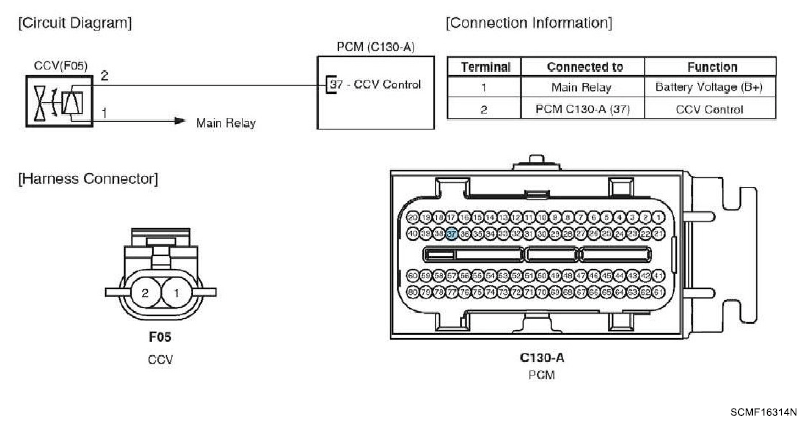

Fig 1: Canister Close Valve Circuit Diagram With Connector Terminals
