Engine Control System (Fuel System (3.3L))
›
Engine Control System
›
Component Location
Component Location

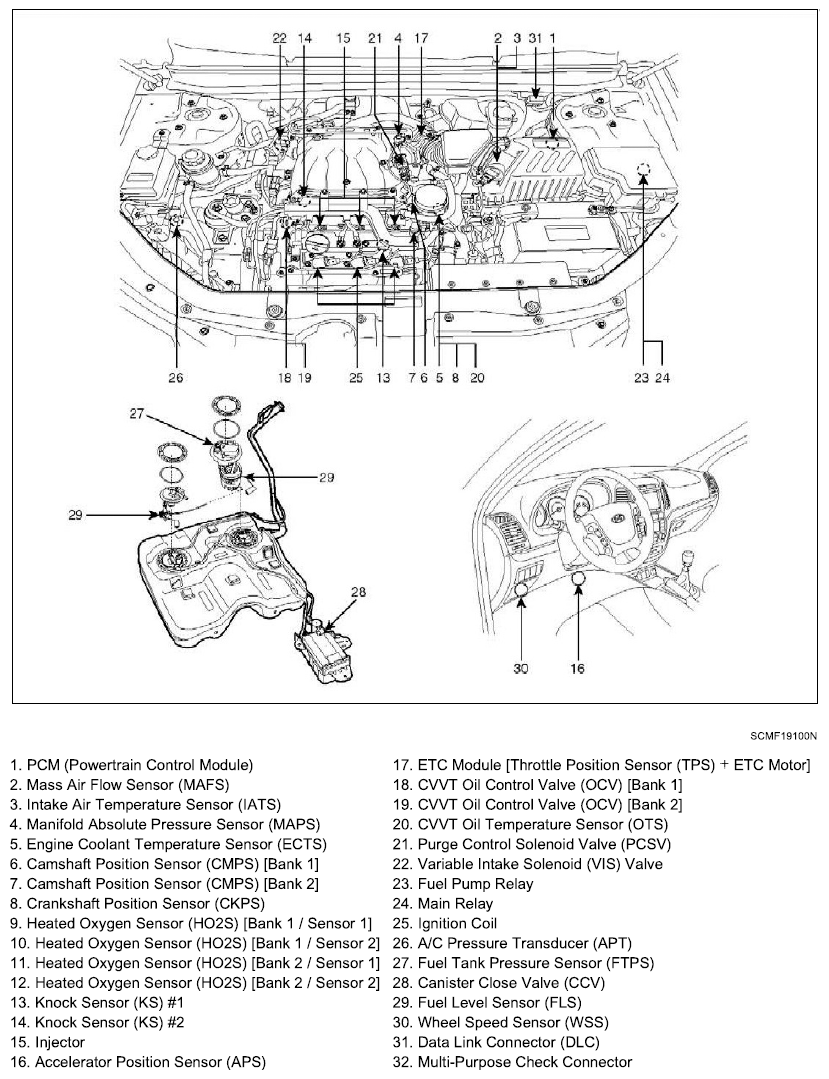

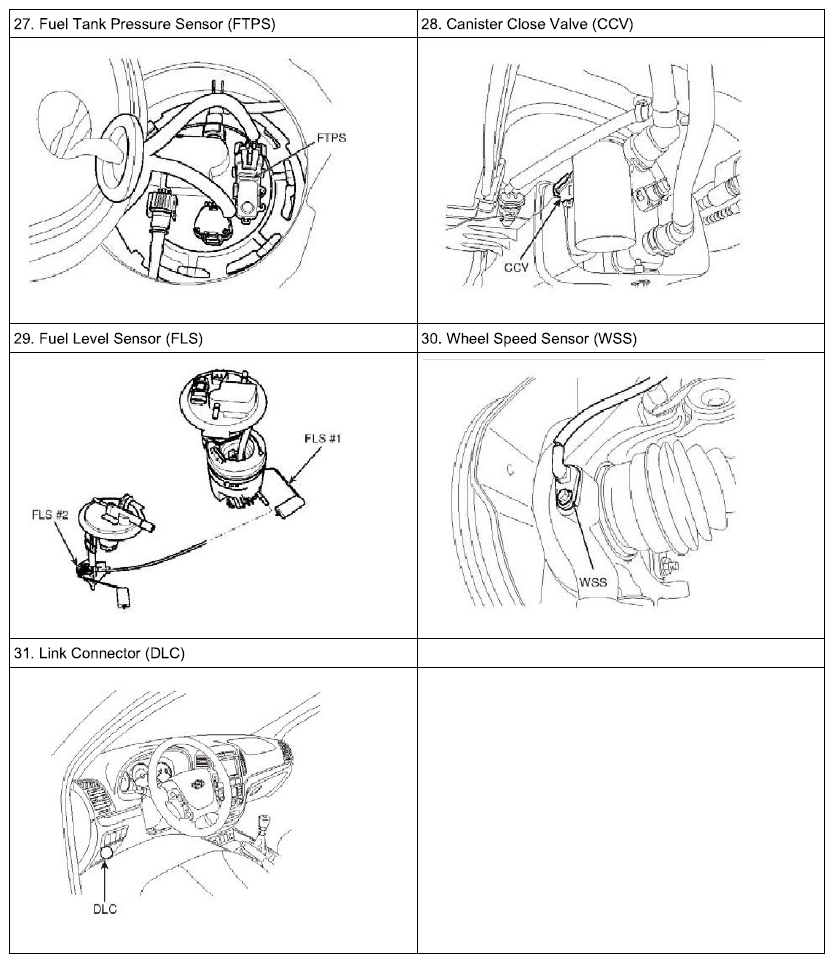

Fig 1: Identifying Engine Control System Components Location
Courtesy of HYUNDAI MOTOR CO.

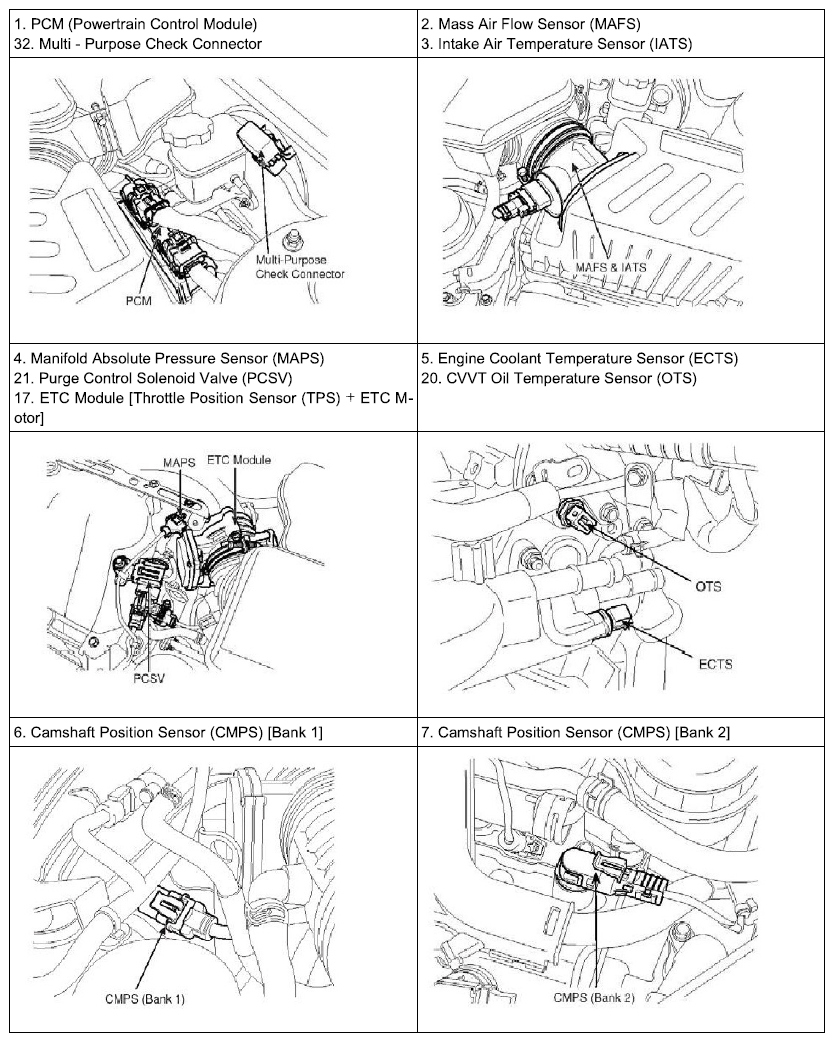

Fig 2: Identifying Engine Control System Connectors (1 Of 4)
Courtesy of HYUNDAI MOTOR CO.

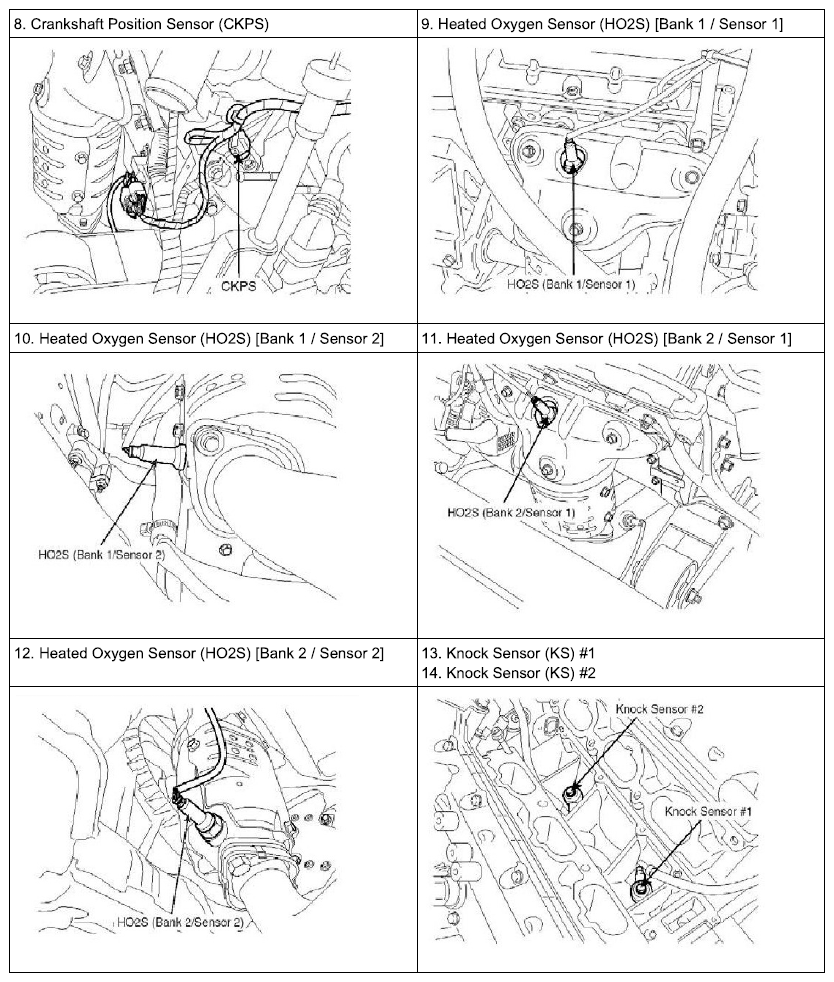

Fig 3: Identifying Engine Control System Connectors (2 Of 4)
Courtesy of HYUNDAI MOTOR CO.
Fig 4: Identifying Engine Control System Connectors (3 Of 4)
Courtesy of HYUNDAI MOTOR CO.

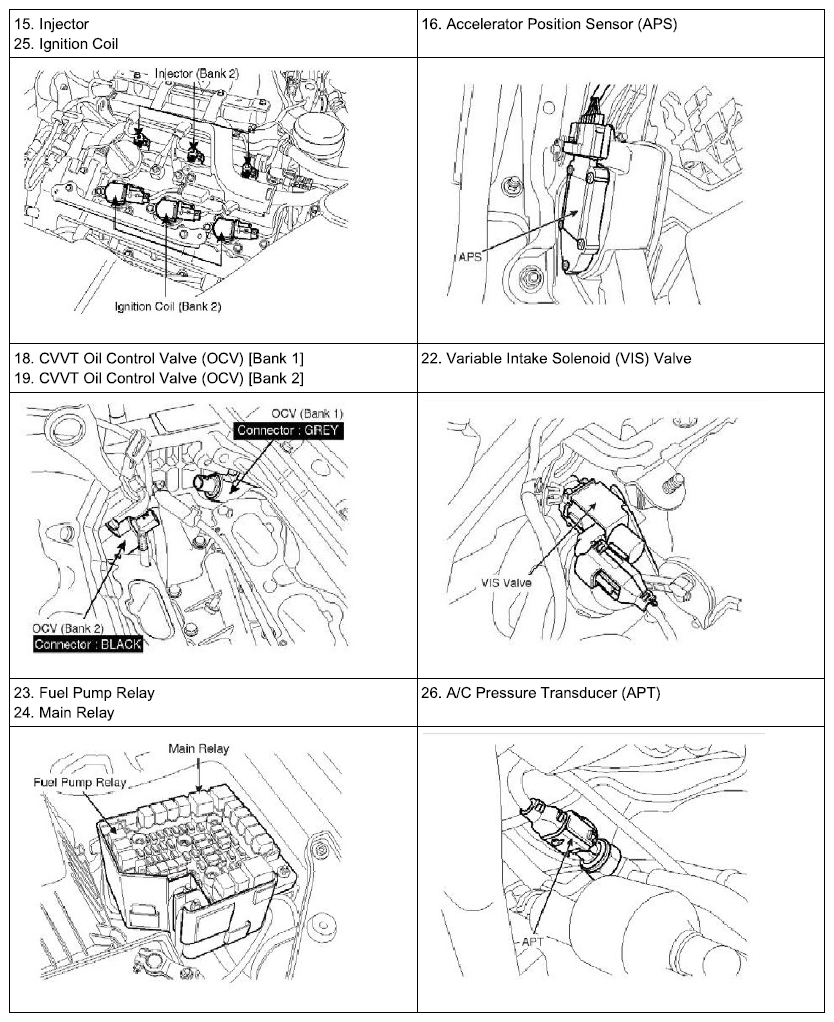

Fig 5: Identifying Engine Control System Connectors (4 Of 4)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
