Hyundai
›
2009
›
Santa Fe SE, AWD
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System (Fuel System (3.3L))
›
Engine Coolant Temperature Sensor (ECTS)
›
Circuit Diagram
Circuit Diagram

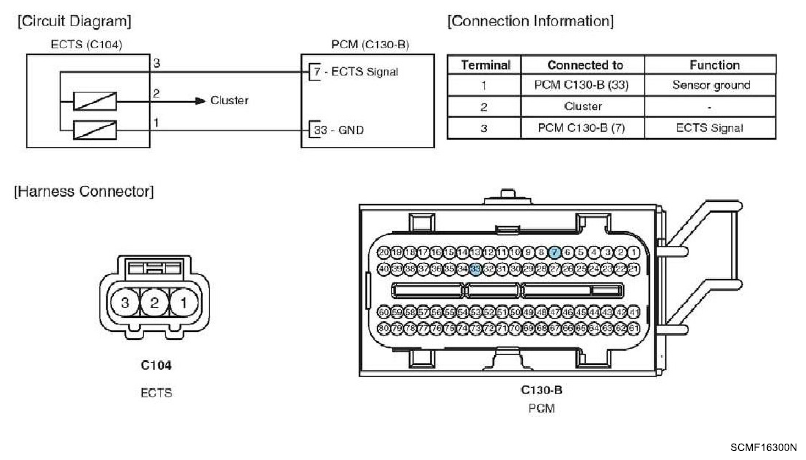

Fig 1: Engine Coolant Temperature Sensor Circuit Diagram With Connector Terminals
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
