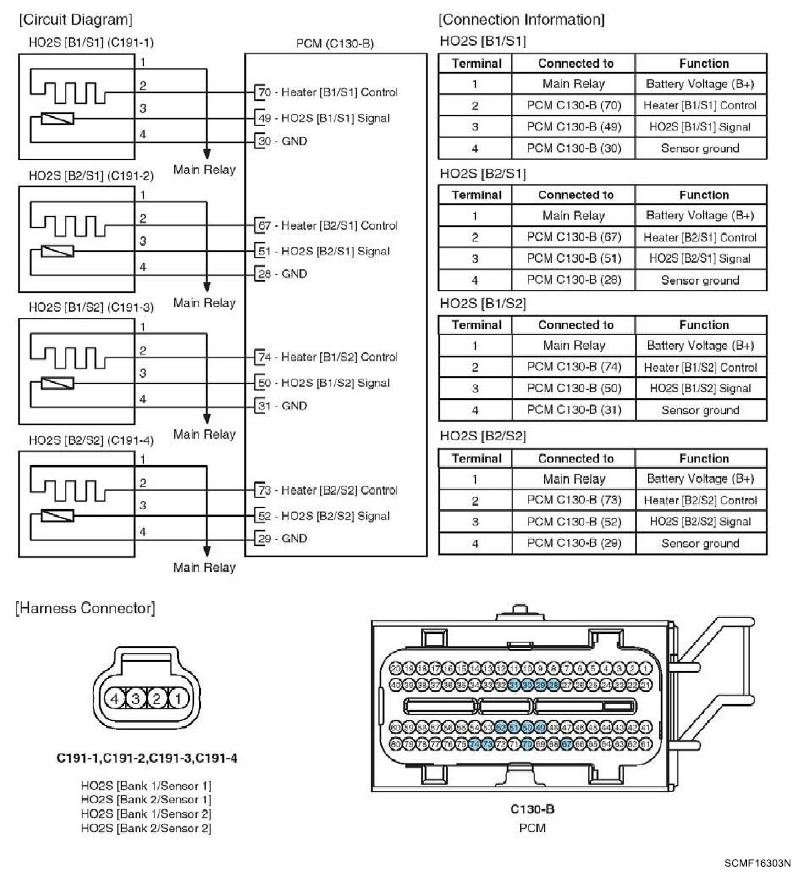

Home › Hyundai › 2009 › Santa Fe SE, AWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System (Fuel System (3.3L)) › Heated Oxygen Sensor (HO2S) › Circuit Diagram
