Engine Control System (Fuel System (3.3L))
›
Intake Air Temperature Sensor (IATS)
›
Circuit Diagram
Circuit Diagram

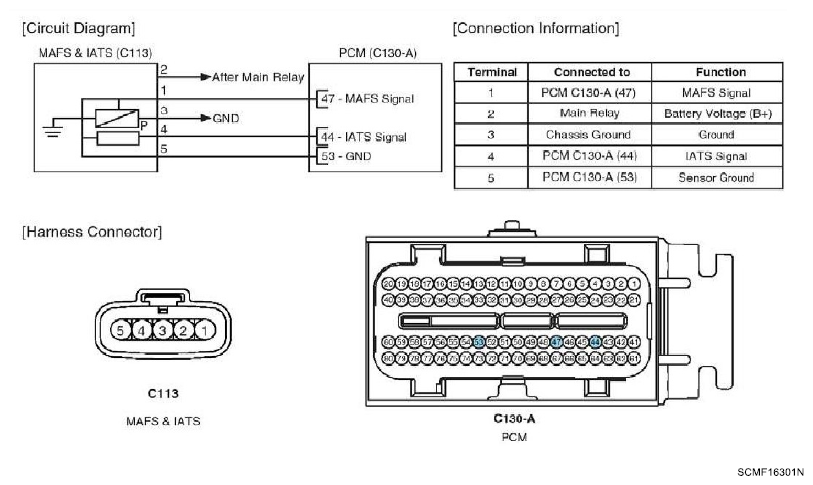

Fig 1: Intake Air Temperature Sensor Connector Terminals With Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
