Knock Sensor (KS)
›
Circuit Diagram
Circuit Diagram

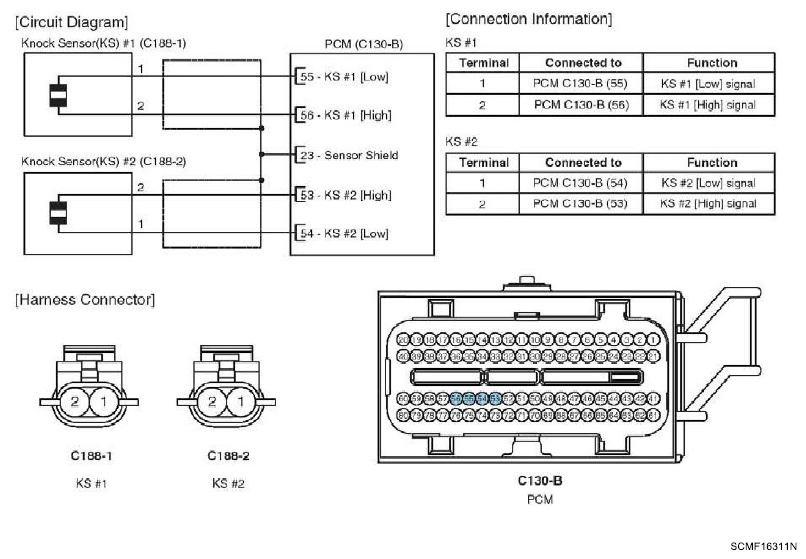

Fig 1: Knock Sensor Circuit Diagram With Connector Terminals
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
