Engine Control System (Fuel System (3.3L))
›
Variable Intake Solenoid (VIS) Valve
›
Circuit Diagram
Circuit Diagram

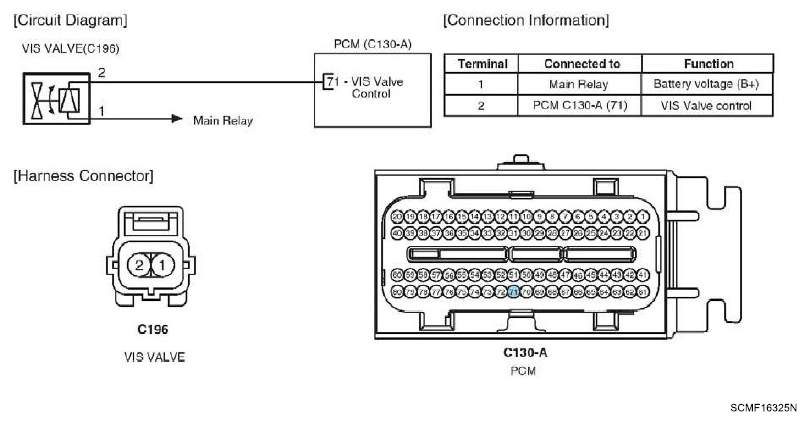

Fig 1: VIS Valve Circuit Diagram With Connector Terminals
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
