Monitor Scan Tool Data

1. Connect scan tool to data link connector (DLC).
2. Ignition "ON" & Engine "OFF".
3. Monitor the "TRANSAXLE RANGE SWITCH" parameter on the scan tool.
4. Shift selector lever from "P" range to "D" range.

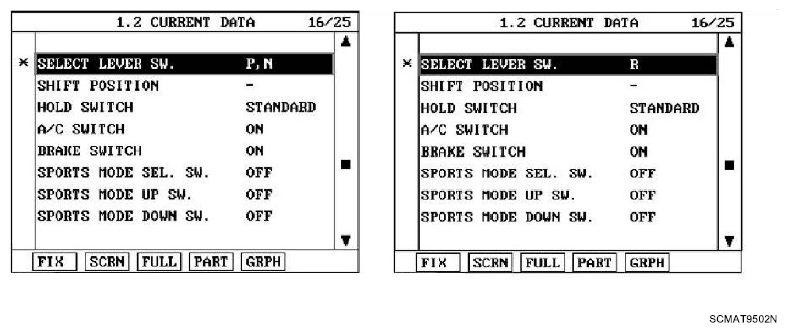

   Fig 1: Monitor Scan Tool Display - Select Lever Switch

   Courtesy of HYUNDAI MOTOR CO.

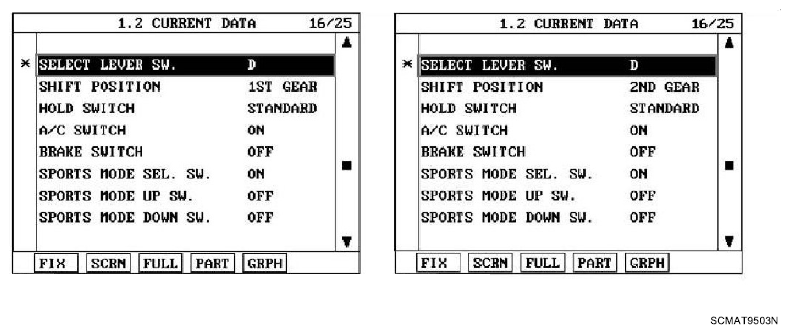

   Fig 2: Monitor Scan Tool Display - Shift Position (IST/2ND Gear)

   Courtesy of HYUNDAI MOTOR CO.

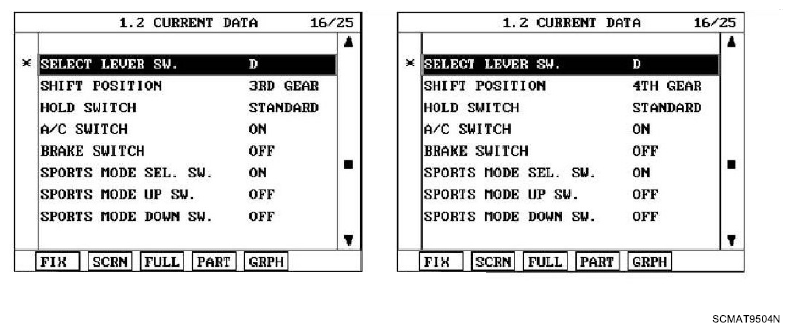

   Fig 3: Monitor Scan Tool Display - Shift Position (3RD/4TH Gear)

   Courtesy of HYUNDAI MOTOR CO.

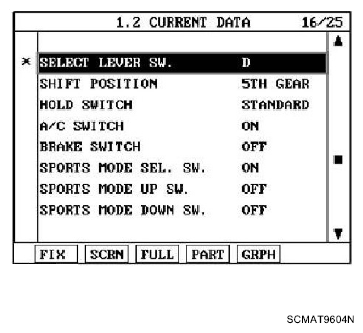

   Fig 4: Monitor Scan Tool Display - Shift Position (5TH Gear)

   Courtesy of HYUNDAI MOTOR CO.
5. Does "TRANSAXLE RANGE SWITCH" follow the reference data?

   YES

   • Fault is intermittent caused by poor contact in the sensor's and/or TCM (PCM)'s connector or was repaired and TCM (PCM) memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

   NO

   • Go to "W/HARNESS INSPECTION " procedure.

* Most of fault about inhibitor switch, result from faulty shift cable adjustment or incorrect location of manual control lever and inhibitor switch. So, when DTC which related Inhibitor switch or engine start defectiveness at "P" range happen, After check the shift cable adjustment or location of manual control lever and inhibitor switch, repair or replace as necessary.
