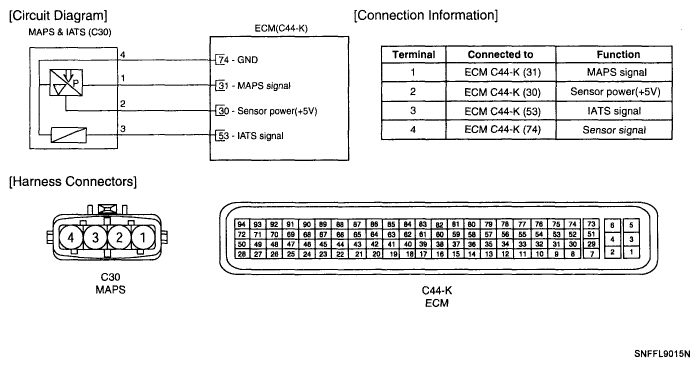

Home › Hyundai › 2009 › Sonata GLS, 2.4 C, Standard › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System (Fuel System) - 2.4L › Intake Air Temperature Sensor (IATS) › Circuit diagram
