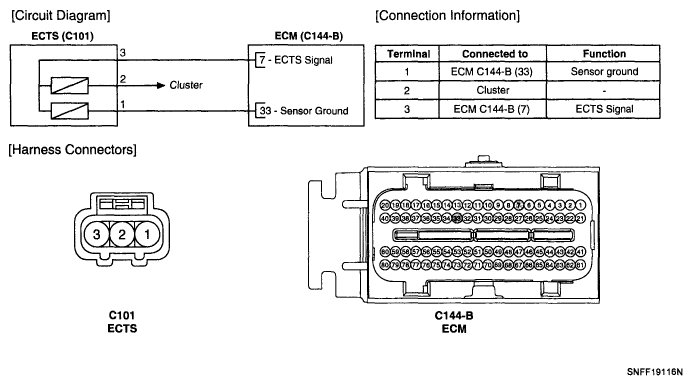

Home › Hyundai › 2009 › Sonata GLS, 3.3 F › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System (Fuel System) - 3.3L › Engine Coolant Temperature Sensor (ECTS) › Circuit Diagram
