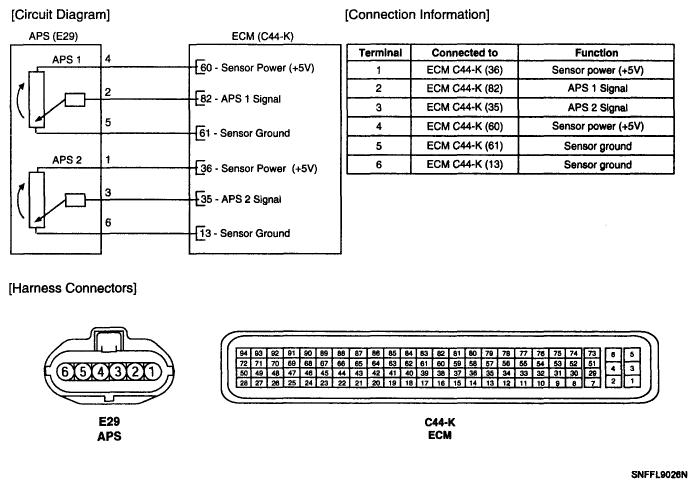

Home › Hyundai › 2009 › Sonata SE, 2.4 C › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System (Fuel System) - 2.4L › Accelerator Position Sensor (APS) › Circuit diagram
