Sonata SE, 2.4 C
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System (Fuel System) - 2.4L
›
Component location
Component location

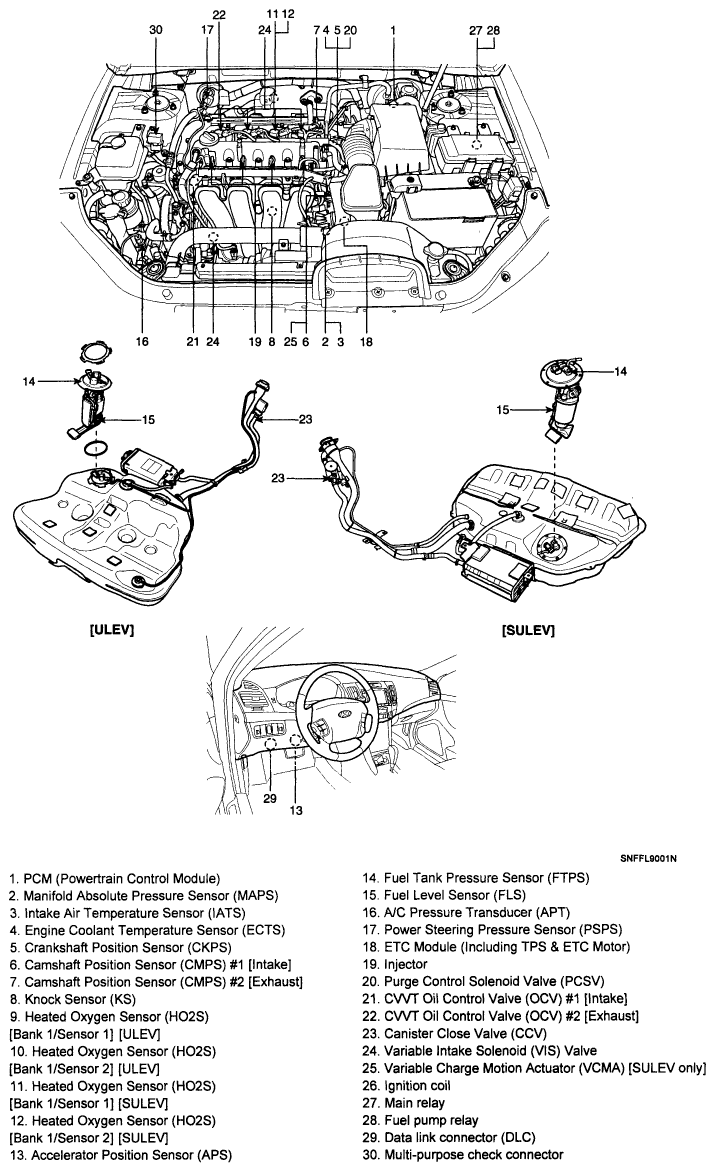

Fig 1: Identifying Engine Control System Component Location (1 Of 5)
Courtesy of HYUNDAI MOTOR CO.

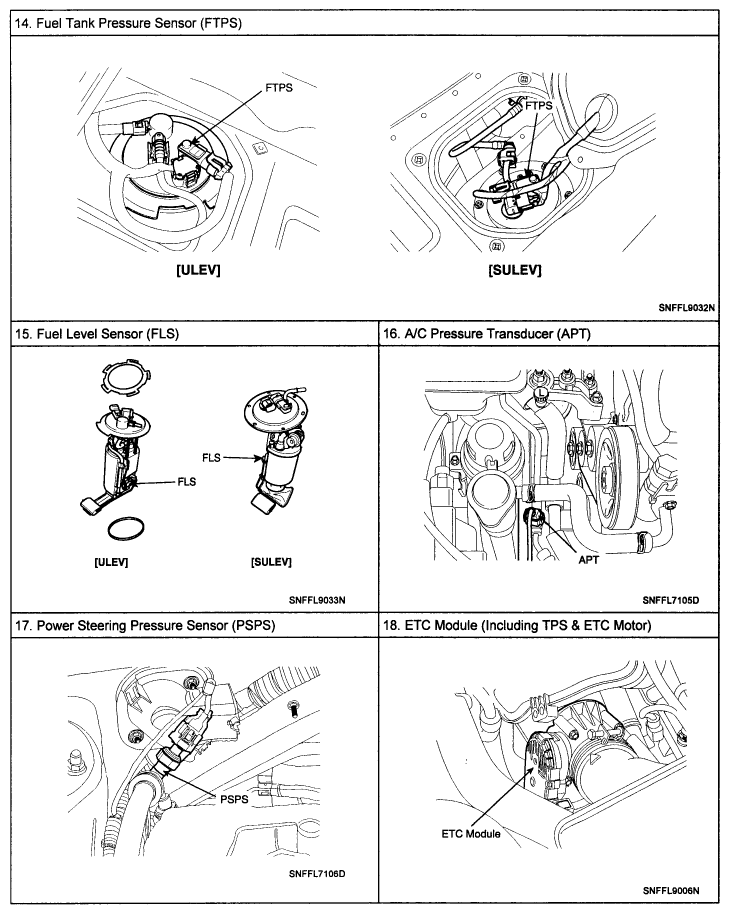

Fig 2: Identifying Engine Control System Component Location (2 Of 5)
Courtesy of HYUNDAI MOTOR CO.

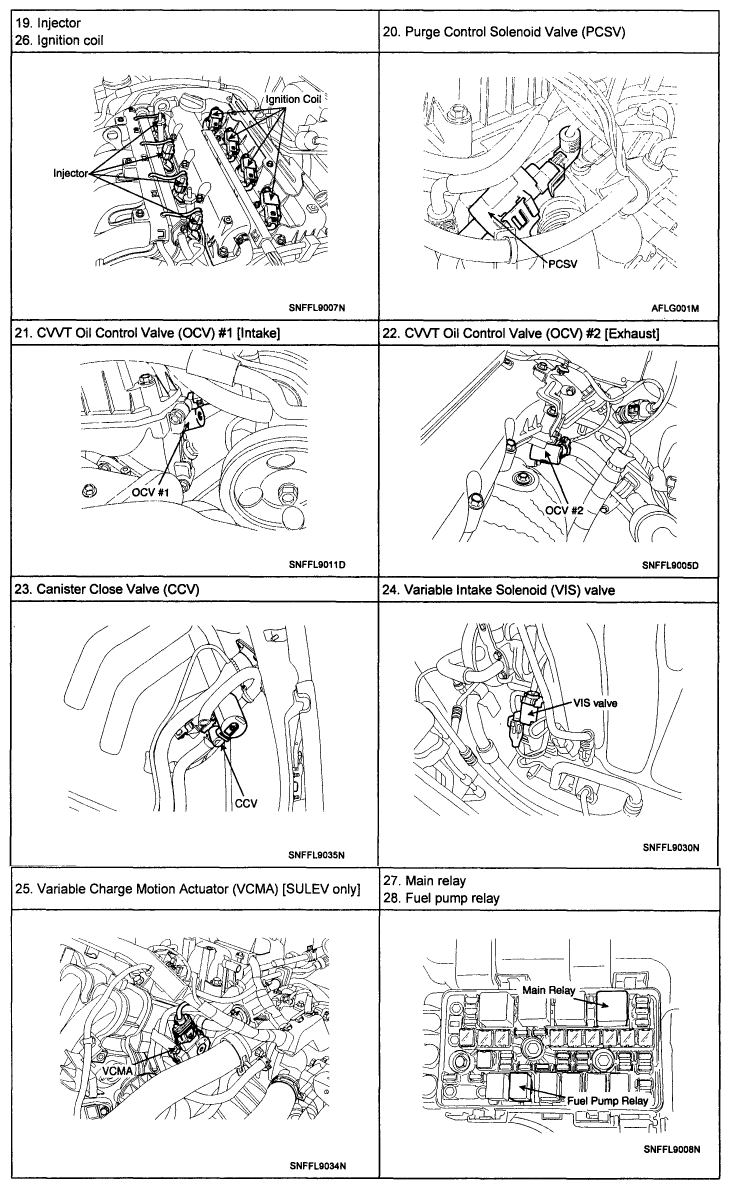

Fig 3: Identifying Engine Control System Component Location (3 Of 5)
Courtesy of HYUNDAI MOTOR CO.

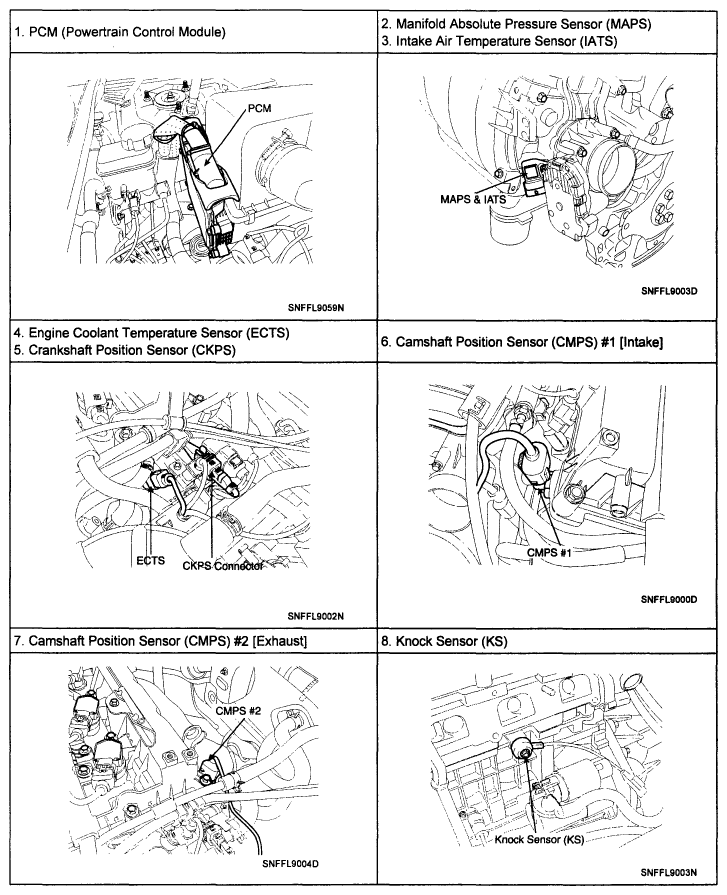

Fig 4: Identifying Engine Control System Component Location (4 Of 5)
Courtesy of HYUNDAI MOTOR CO.

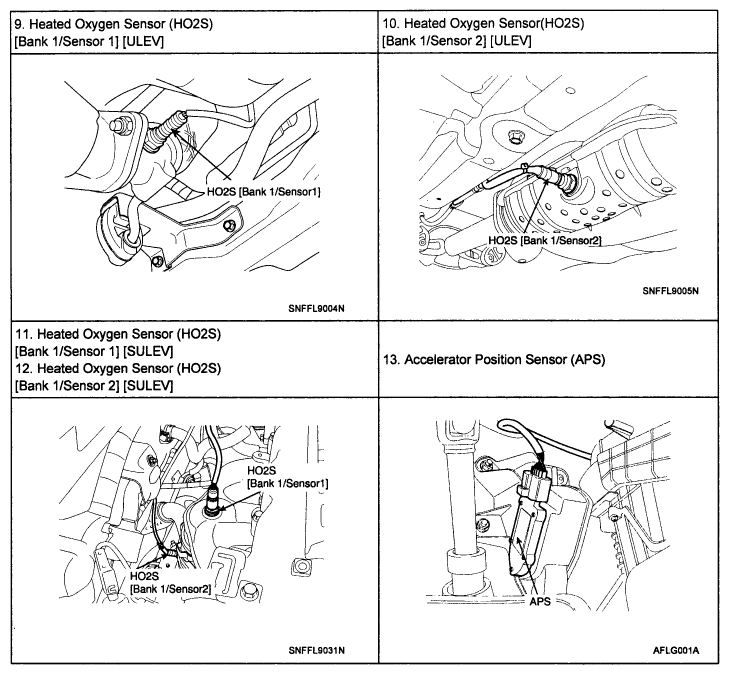

Fig 5: Identifying Engine Control System Component Location (5 Of 5)
Courtesy of HYUNDAI MOTOR CO.
