Circuit diagram

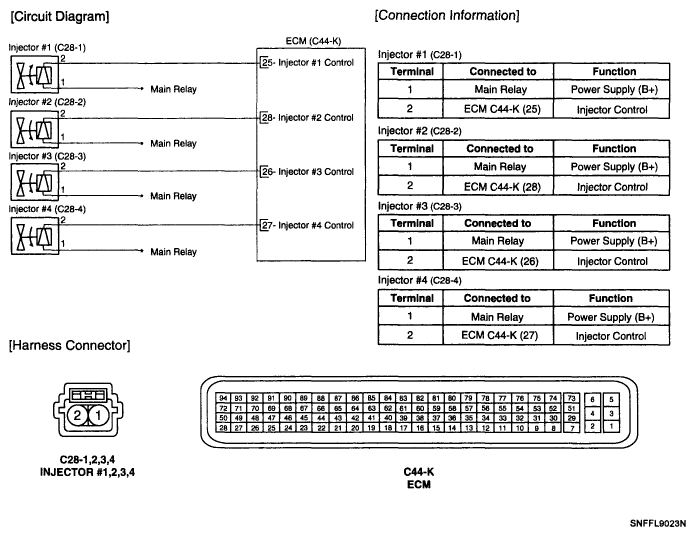

Fig 1: Identifying ECM And Injector Connector Terminal
G06107517Courtesy of HYUNDAI MOTOR CO.
