Charging System: Alternator: Components: (2.0L)

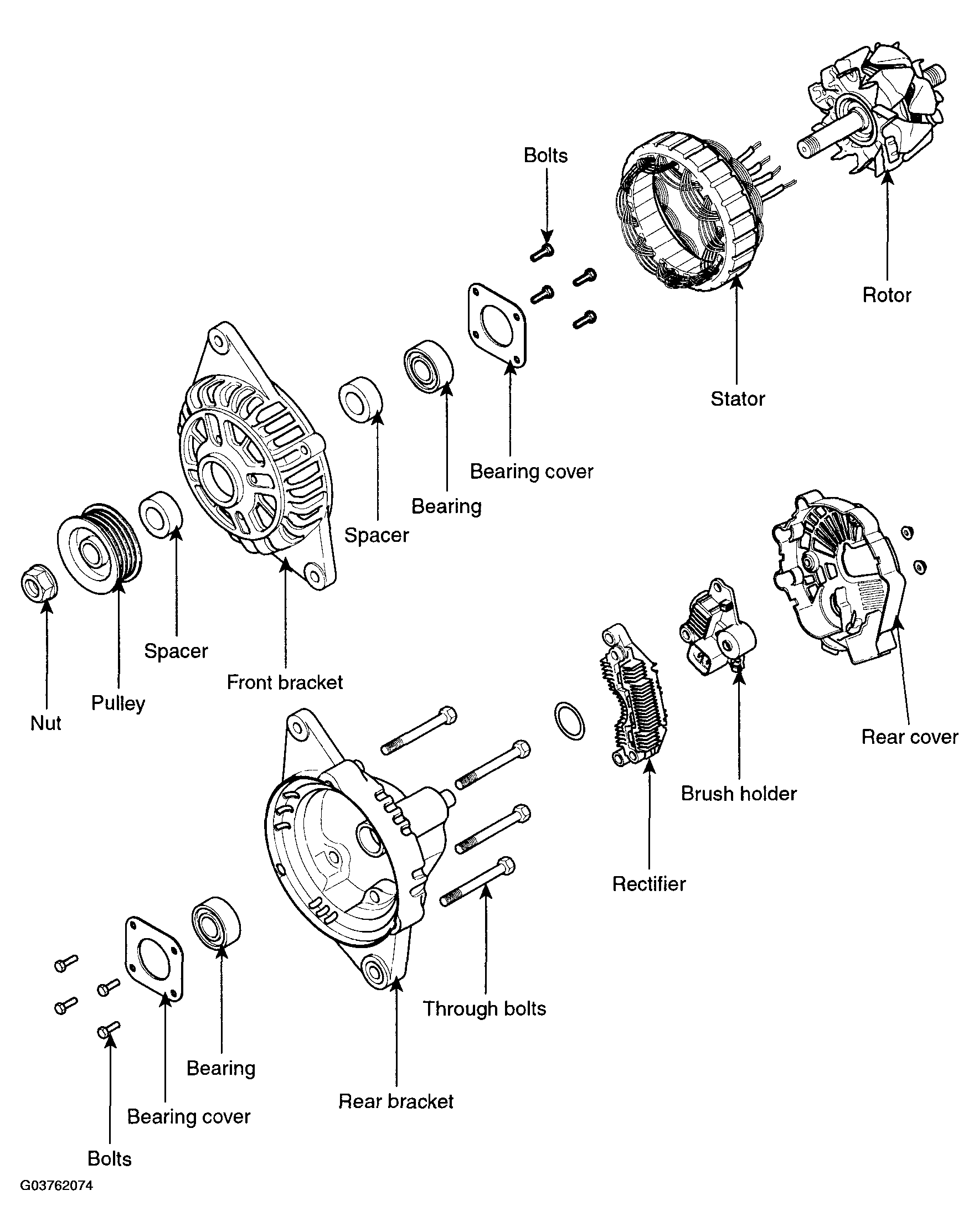

Fig 1: Identifying Gasoline Components (2.0L)
G03762074Courtesy of HYUNDAI MOTOR CO.
