Tucson GLS, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System (2.0L)
›
Components Location
Components Location

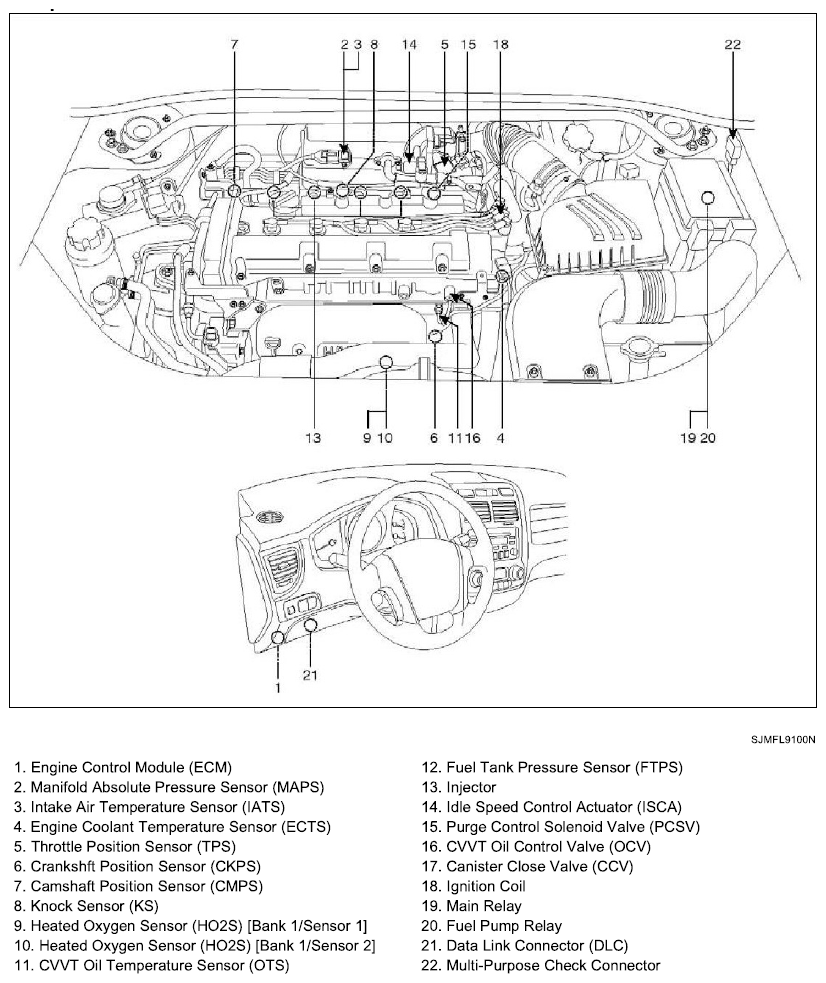

Fig 1: Identifying Engine Control System Components Location (1 Of 4)
Courtesy of HYUNDAI MOTOR CO.

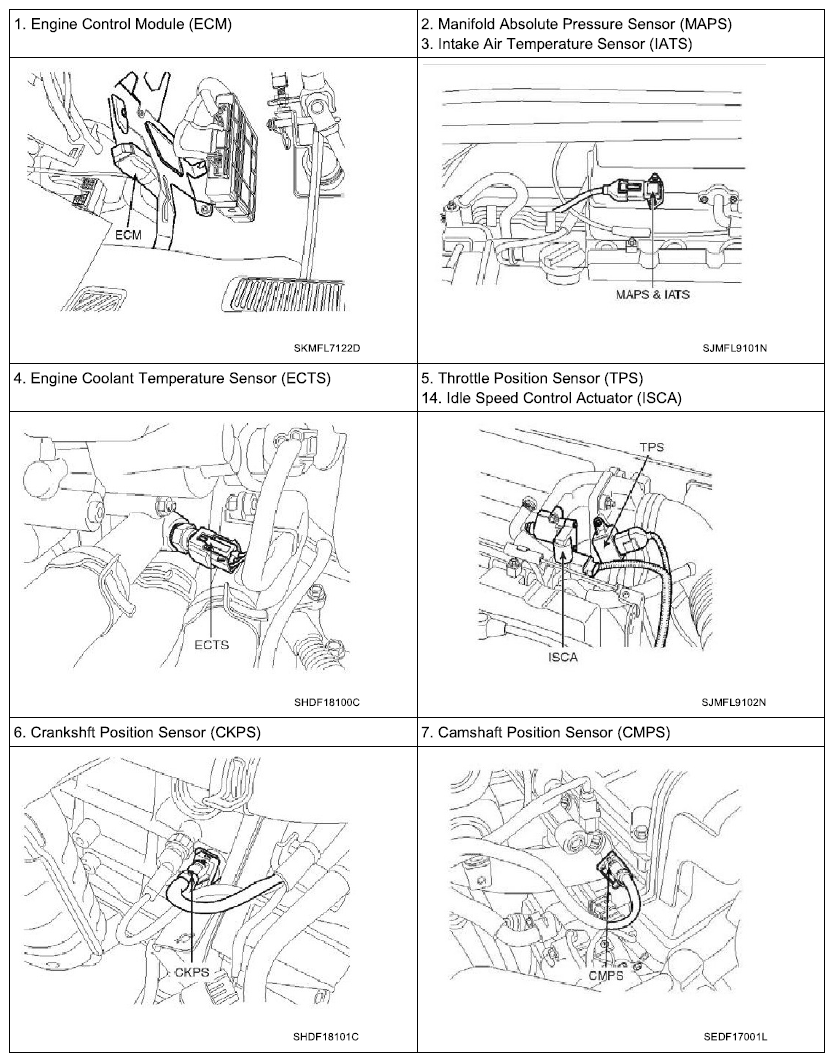

Fig 2: Identifying Engine Control System Components Location (2 Of 4)
Courtesy of HYUNDAI MOTOR CO.

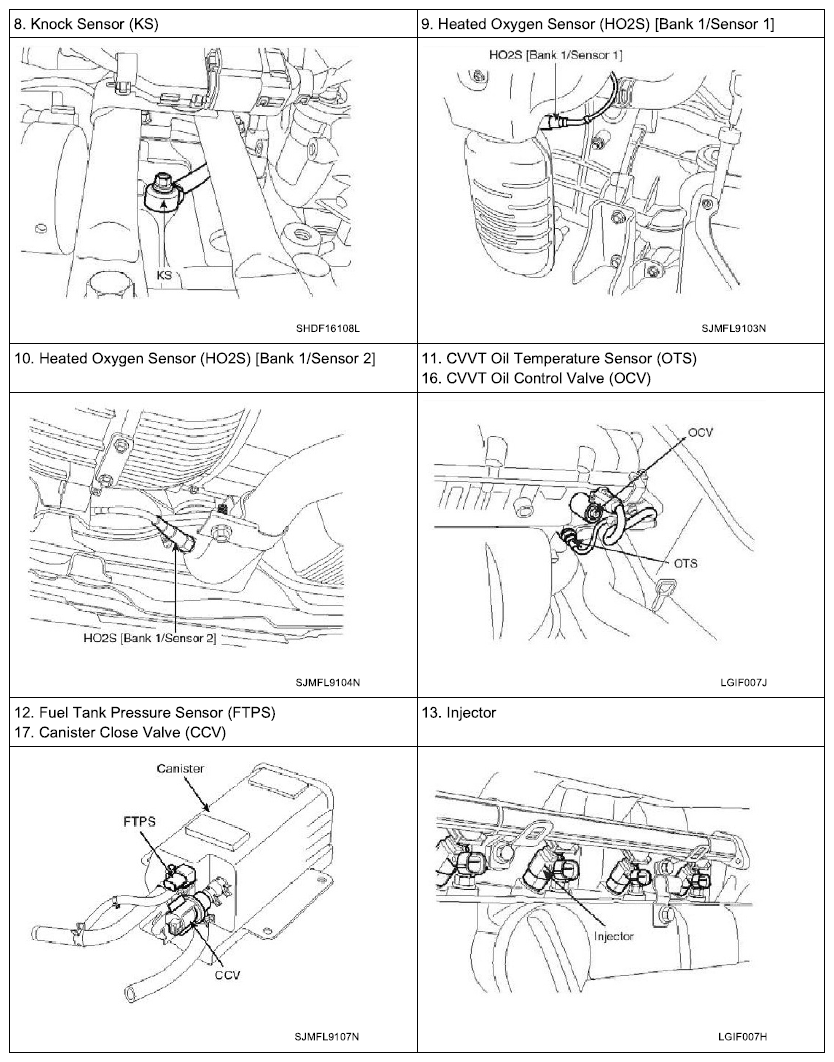

Fig 3: Identifying Engine Control System Components Location (3 Of 4)
Courtesy of HYUNDAI MOTOR CO.

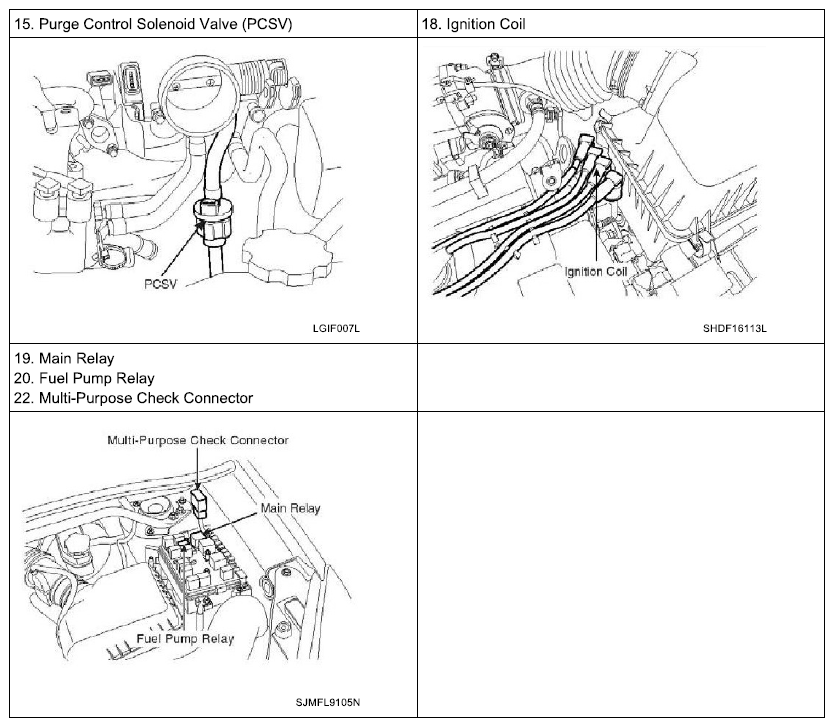

Fig 4: Identifying Engine Control System Components Location (4 Of 4)
Courtesy of HYUNDAI MOTOR CO.
