Control Circuit Inspection

Check for open in control harness.
1. Ignition "OFF".
2. Disconnect HO2S and PCM connectors
3. Measure resistance between terminals 3 of the HO2S heater harness connector and 8 of the PCM harness connector.
  Specification : Approx 0Ω

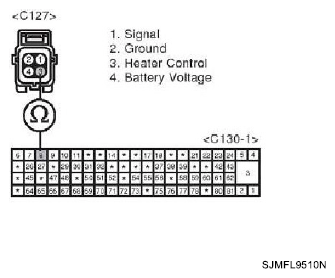

  Fig 1: Measuring Resistance Between Terminals 3 Of HO2S Heater Harness Connector And PCM Harness Connector
  Courtesy of HYUNDAI MOTOR AMERICA
4. Is resistance within the specification?
  YES
  - Go to next step as below
  NO
  - Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
Check for short to battery in control circuit.
1. Reconnect the PCM connector.
2. Ignition "ON" & Engine "OFF"
3. Measure voltage between terminal 3 of the HO2S heater harness connector and chassis ground.
  Specification : Approx 0V

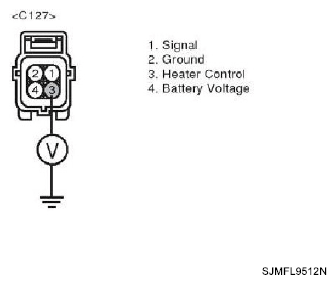

  Fig 2: Measuring Voltage Between Terminal 3 Of HO2S Heater Harness Connector And Chassis Ground
  Courtesy of HYUNDAI MOTOR AMERICA
4. Is voltage within the specification?
  YES
  - Go to "COMPONENT INSPECTION " procedure
  NO
  - Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
