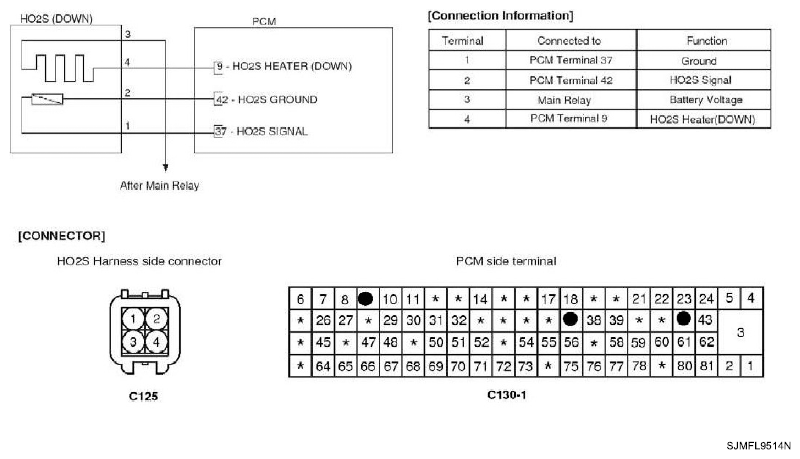

Home › Hyundai › 2009 › Tucson GLS, Automatic › Repair and Diagnosis › Engine Performance › System › DTC Troubleshooting Procedures (2.0L) › Troubleshooting for DTC › P0136 O2 Sensor Circuit Malfunction (Bank 1/Sensor 2) › Schematic Diagram
