Signal Circuit Inspection

Measure resistance between terminals 2 of the sensor harness connector and 42 of the PCM harness connector.
Specification : Approx. 0Ω

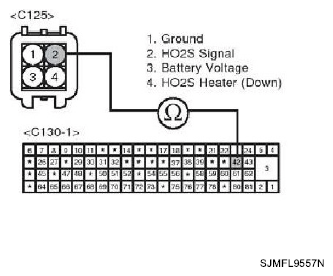

Fig 1: Measuring Resistance Between Terminals 2 Of Sensor Harness Connector And 42 Of PCM Harness Connector
Courtesy of HYUNDAI MOTOR AMERICA
Is resistance within the specification?
YES
- Go to "COMPONENT INSPECTION " procedure.
NO
- Repair open in the ground circuit and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
