Signal Circuit Inspection
- Ignition "OFF"
- Disconnect HO2S connector.

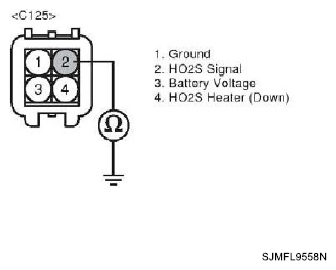

- Measure resistance between terminal 2 of the sensor harness connector and chassis ground.
Specification : Infinite
- Is resistance within the specification?
YES
- Go to "COMPONENT INSPECTION " procedure.
NO
- Repair open in the ground circuit and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
