Component Inspection

  1. Ignition "OFF".
  2. Remove "TRANSAXLE RANGE SWITCH"
  3. Measure the resistance between each terminal of the sensor.

    Specification  : Approx. 0 Ω

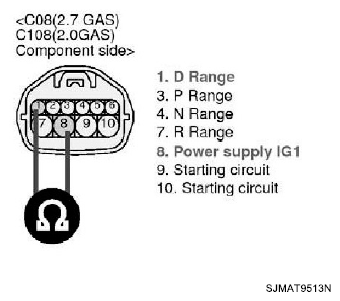

    Fig 1: Measuring Resistance Between Each Terminal Of Sensor
    G06207264Courtesy of HYUNDAI MOTOR CO.

    [RANGE SWITCH continuity check table (Case of SPORTS MODE vehicle has no 3, 2, L range)]

    RANGE SWITCH CONTINUITY CHECK CHART

    Range Terminal
    P R N D 3 2 L
    1       •
    2           •
    3 •
    4     •
    5         •   •
    6
    7   •
    8 • • • • • • •
    9 •   •
    10 •   •
  4. Is resistance within specifications?

    YES

    • Substitute with a known-good PCM/TCM and check for proper operation. If the problem is corrected, replace PCM/TCM as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
