Signal Circuit Inspection

Ignition "OFF".
Disconnect "TRANSAXLE RANGE SWITCH" and "TCM (PCM)" connector.
Measure resistance between each terminals of the sensor harness to check for Short.
Specification : Infinite

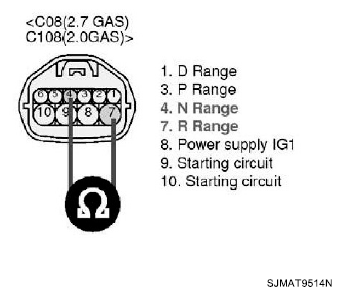

Fig 1: Measuring Resistance Between Each Terminals Of Sensor Harness To Check For Short
Courtesy of HYUNDAI MOTOR CO.
Is resistance within specifications?
YES
- Go to "COMPONENT INSPECTION " procedure.
NO
- Check for Short in harness. Repair as necessary and Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
