Check PCM/TCM

  1. Ignition "ON" & Engine "OFF".
  2. Connect "OUTPUT SPEED SENSOR" connector.
  3. Install scantool and sleet a SIMU-SCAN,
  4. Simulate frequency to OUTPUT SPEED SENSOR signal circuit.

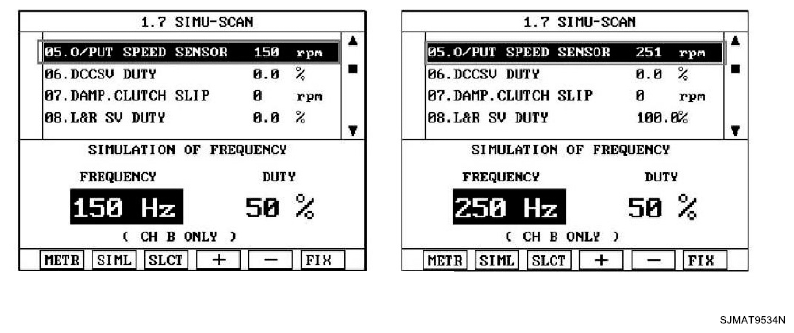

    Fig 1: Scan Tool Screen Display - OUTPUT SPEED SENSOR
    G06207299Courtesy of HYUNDAI MOTOR CO.

    Fig 1) OUTPUT 150Hz → 150rpm

    Fig 2) OUTPUT 250Hz → 250rpm

    * The values are subject to change according to vehicle model or conditions.

  5. Is "OUTPUT SPEED SENSOR" signal value changed according to simulation frequency?

    YES

    • Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO

    • Substitute with a known-good PCM/TCM and check for proper operation. If the problem is corrected, replace PCM/TCM as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
