Monitor Scantool Data
- Connect scantool to Data Link Connector (DLC)
- Ignition "ON" & Engine "OFF".
- Press the ESC SWITCH.
- Monitor the "ESC SWITCH" parameter on the scantool.
Specification : It is changed to ON/OFF.

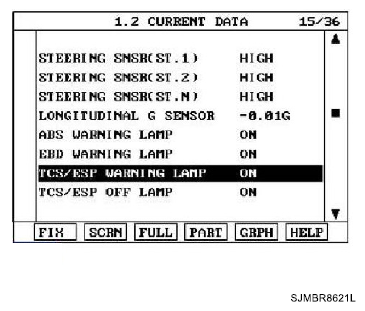

Fig 1) Test Condition : Ignition "ON" & Engine "OFF"
Normal Data
- Whenever the switch is pushed up/down, is the ESC off switch's scantool data changed ON/OFF?
YES
- Fault is intermittent caused by poor connection in ESC switch harness and/or HECU's connector or was repaired and HECU memory was not cleared.
Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to "TERMINAL AND CONNECTOR INSPECTION " procedure.
- Fault is intermittent caused by poor connection in ESC switch harness and/or HECU's connector or was repaired and HECU memory was not cleared.
