Hyundai
›
2009
›
Tucson SE, FWD
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System (G6BA - GSL 2.7L)
›
Components Location
Components Location

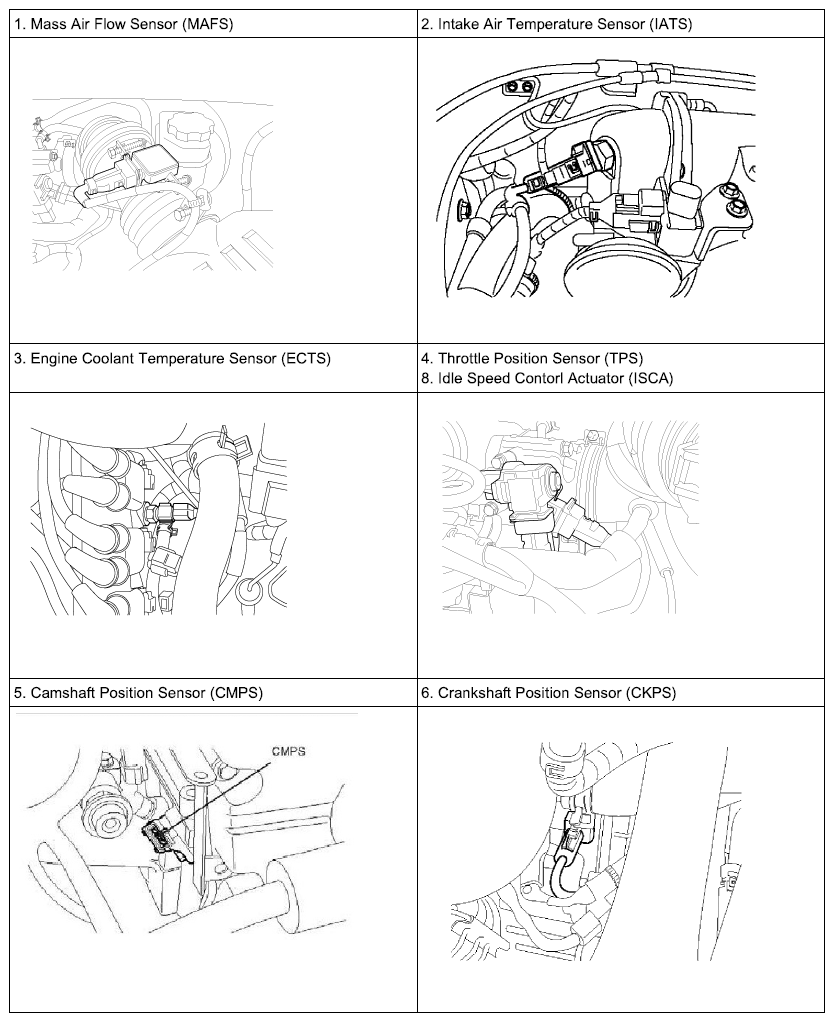

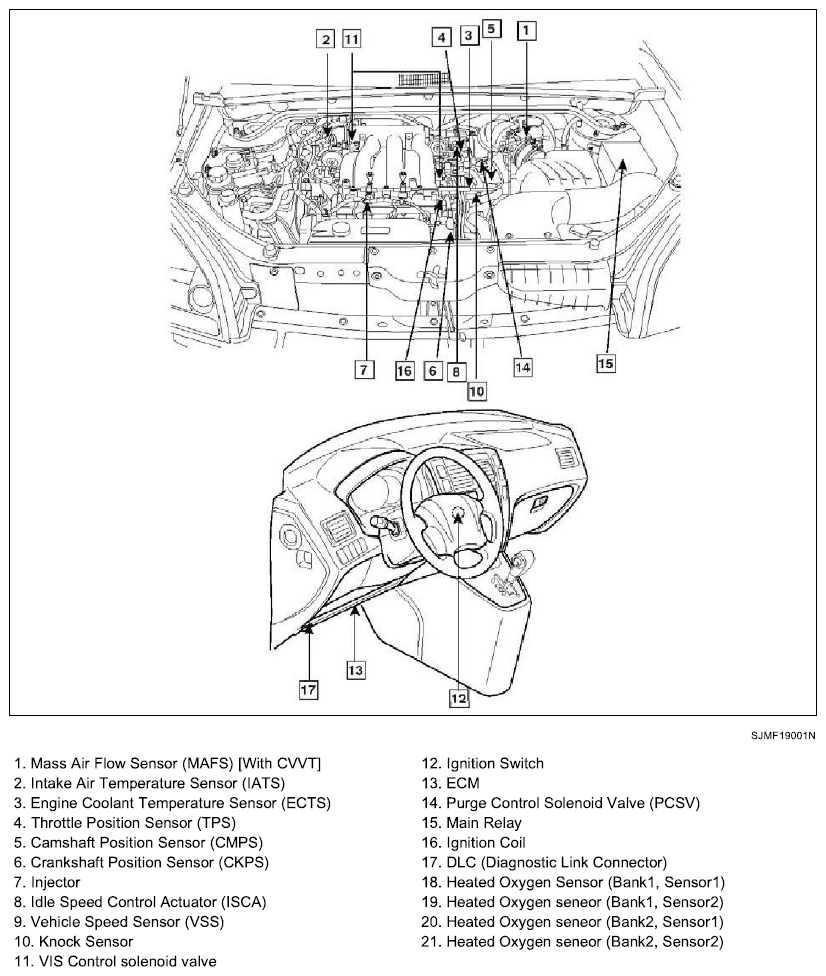

Fig 1: Engine Control System Components Location (1 Of 4)
Courtesy of HYUNDAI MOTOR CO.

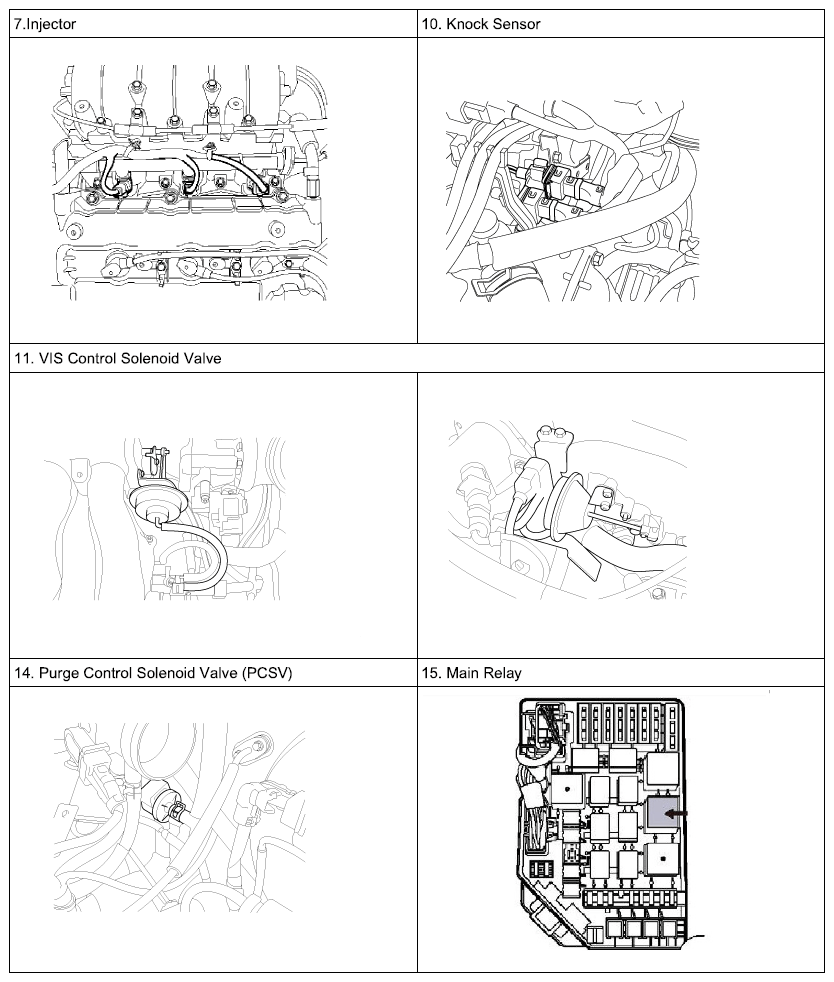

Fig 2: Engine Control System Components Location (2 Of 4)
Courtesy of HYUNDAI MOTOR CO.
Fig 3: Engine Control System Components Location (3 Of 4)
Courtesy of HYUNDAI MOTOR CO.

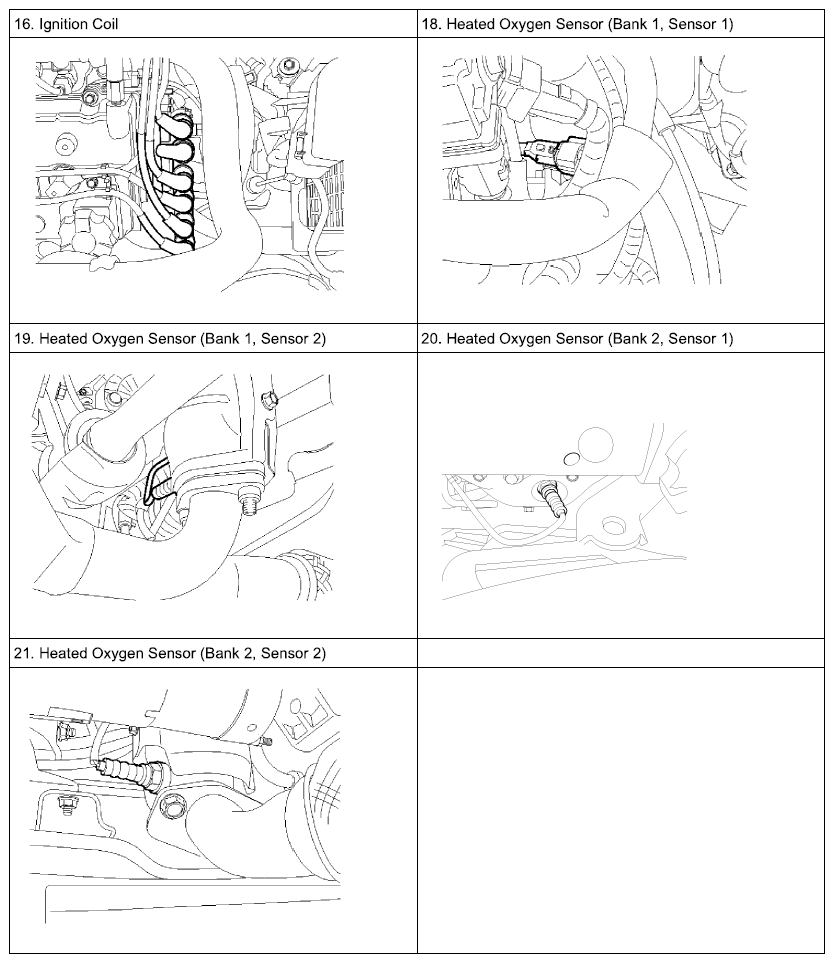

Fig 4: Engine Control System Components Location (4 Of 4)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
