Engine Control System (G6BA - GSL 2.7L)
›
Engine Control Module (ECM)
›
Circuit Diagram
Circuit Diagram

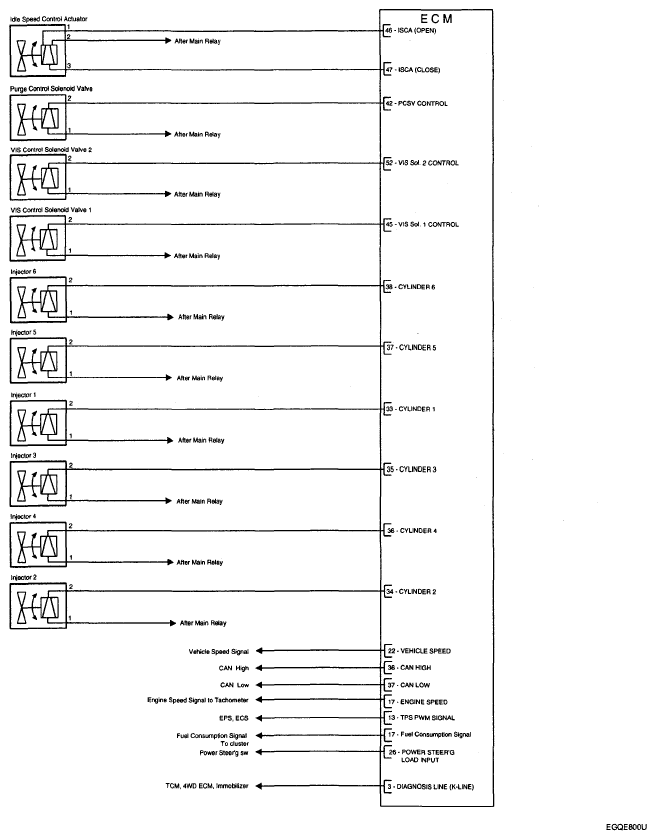

Fig 1: Engine Control Module Circuit Diagram (1 Of 3)
Courtesy of HYUNDAI MOTOR CO.

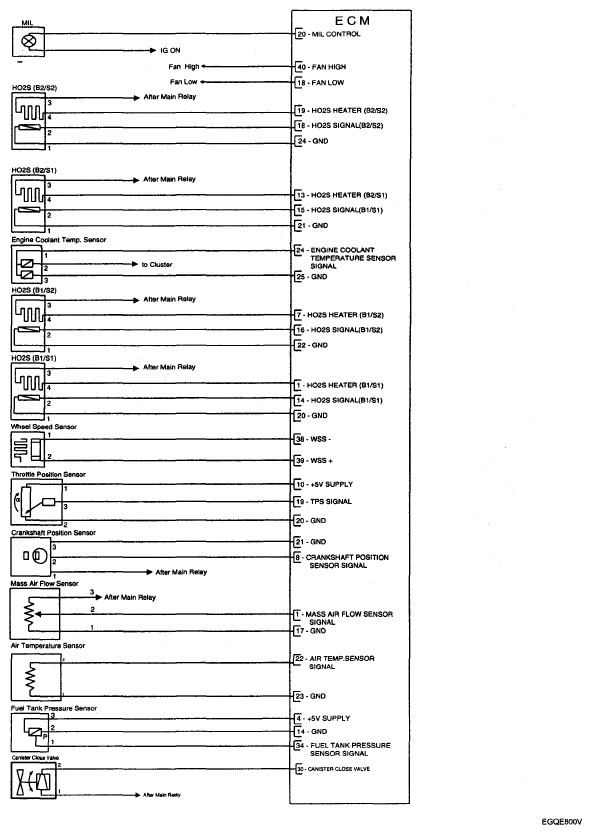

Fig 2: Engine Control Module Circuit Diagram (2 Of 3)
Courtesy of HYUNDAI MOTOR CO.

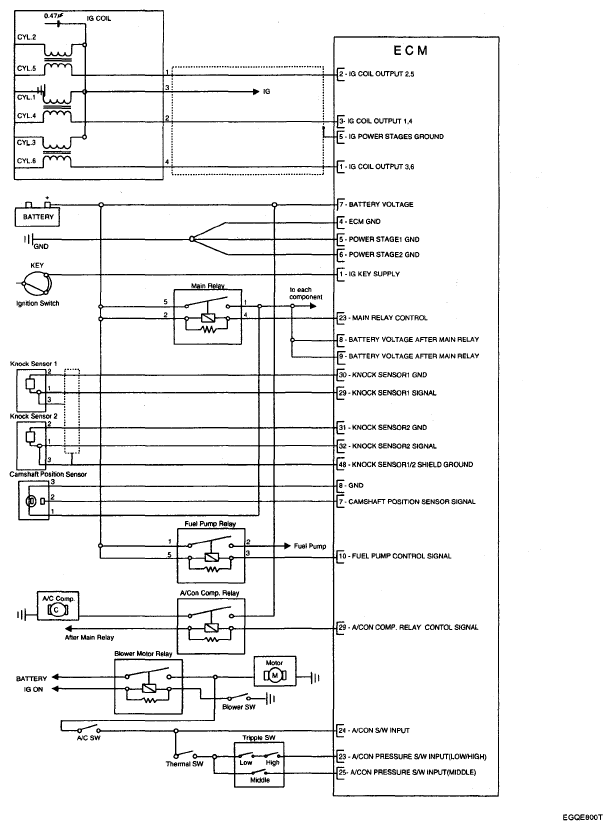

Fig 3: Engine Control Module Circuit Diagram (3 Of 3)
Courtesy of HYUNDAI MOTOR CO.
