Ignition Coil

  1. Remove the engine cover.
  2. Disconnect the spark plug cable and connector.
  3. Remove the ignition coil (A).
  4. Installation is the reverse of removal.

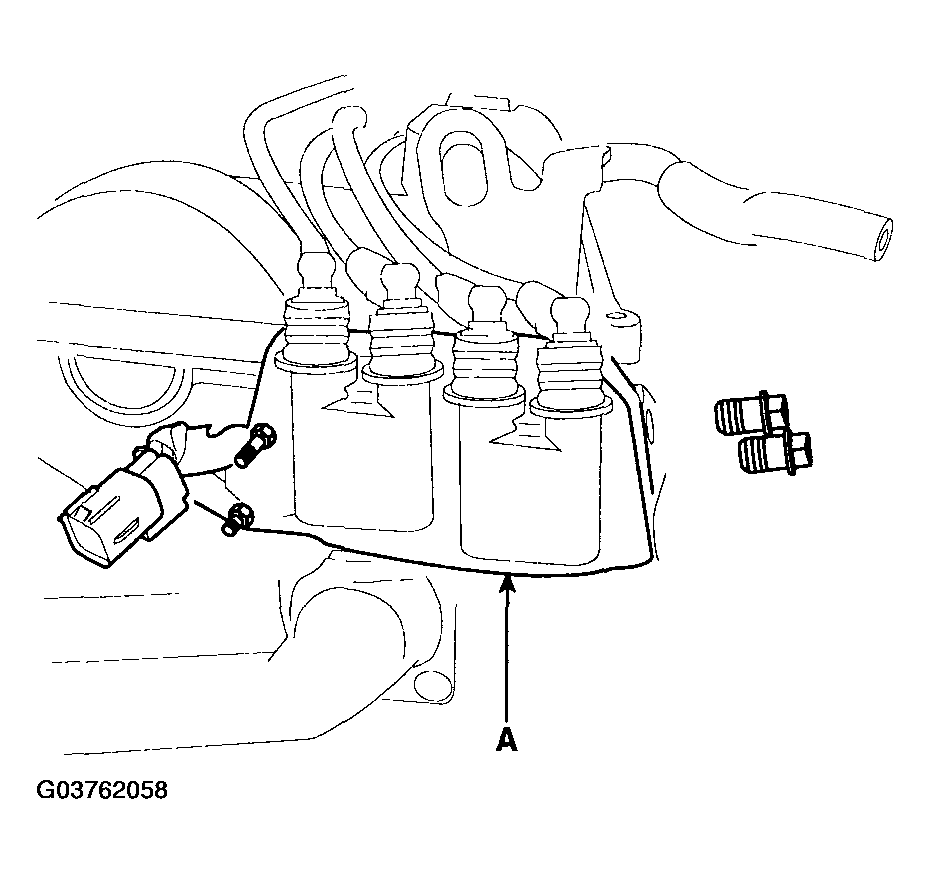

    Fig 1: Ignition Coil (4-Cylinder)
    G03762058Courtesy of HYUNDAI MOTOR CO.

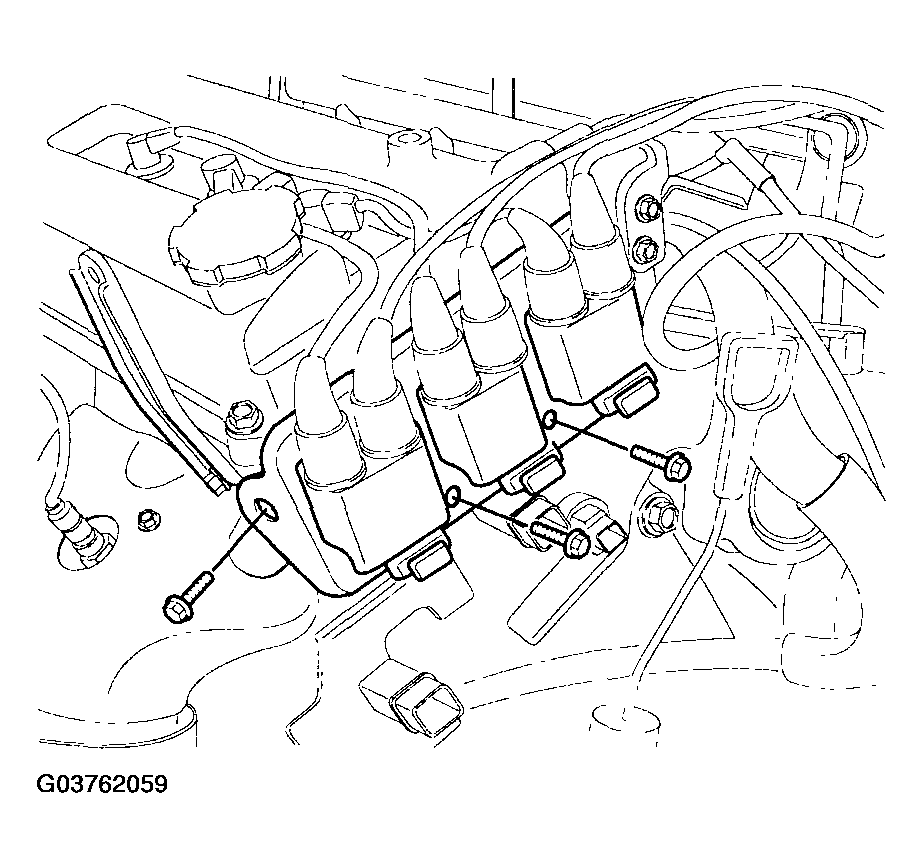

    Fig 2: Ignition Coil (V6)
    G03762059Courtesy of HYUNDAI MOTOR CO.
