Power Tailgate Module: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the third, seat (Refer to the SEAT )
  3. Remove the luggage side trim (Refer to the INTERIOR TRIM ).
  4. Use a small screw driver to loosen clip (A). But do not remove power tailgate push rod (B).
    Fig 1: Identifying Power Tailgate Push Rod And Clip
    G05331985Courtesy of HYUNDAI MOTOR CO.
  5. Remove the power tailgate module mounting bolts (2EA) and connectors (2EA). And then remove the power tailgate module (A).

    TORQUE: 0.025 - 0.035 N.m (0.0025 - 0.0035 kg.m)

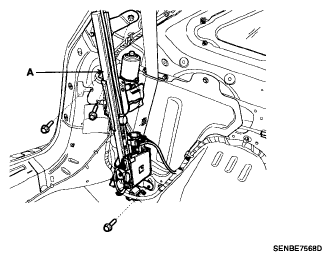

    Fig 2: Identifying Power Tailgate Motor Mounting Bolts
    G05331986Courtesy of HYUNDAI MOTOR CO.
    NOTE:
    • Connect the connectors tightly.
    • Check the power tailgate for normal operation correctly.
    WARNING:
    • A lost drive unit mounting bolt in the vehicle may make a noise.
    • Don't operate the power tailgate when a push rod is removed.
    • A learn cycle must be performed whenever the power is removed.
    • Check the normal operating whenever a power tailgate component is removed or replaced. If the chime sound is heard, check the DTC, wiring harness and cable connections.
