Heated Oxygen Sensor (Ho2S): Inspection: Waveform

Fig 1: Signal Waveform Of Front HO2S (Upper) And Heater (Lower) At Idle
G05329759Courtesy of HYUNDAI MOTOR CO.

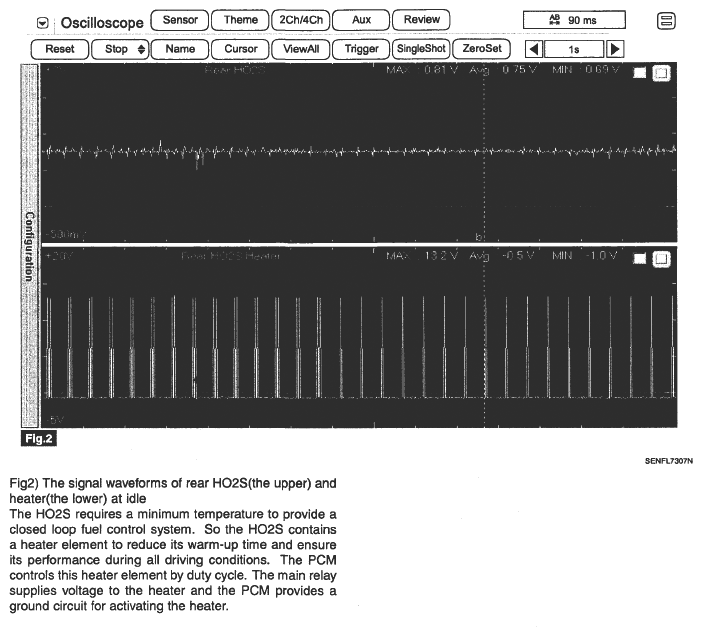

Fig 2: Signal Waveform Of Rear HO2S (Upper) And Heater (Lower) At Idle
G05329760Courtesy of HYUNDAI MOTOR CO.
