Signal Waveform

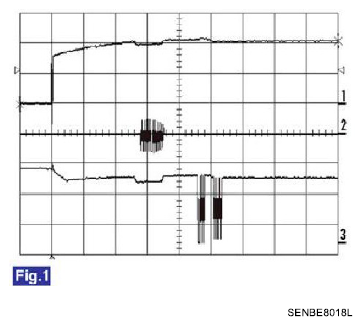

Fig 1: Identifying Signal Waveform
G06207859Courtesy of HYUNDAI MOTOR CO.
  1. trigger: IGN PUSH KNOB
  2. LF interior search
  3. release MSL command (measured at the serial interface)
