Charging System: Alternator: Removal

Disconnect the battery negative terminal first, then the positive terminal.

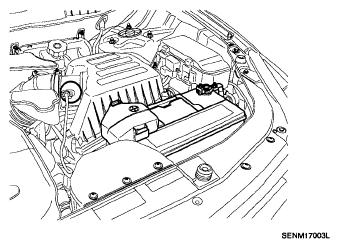

Fig 1: Identifying Charging System
Courtesy of HYUNDAI MOTOR CO.
Disconnect the alternator connector (A), and remove the cable from alternator "B" terminal (B).
Remove the drive belt (C).

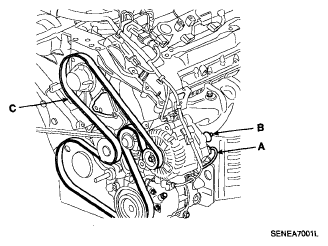

Fig 2: Identifying Alternator Connector And Drive Belt
Courtesy of HYUNDAI MOTOR CO.
Pull out the through bolt and then remove the alternator (A).

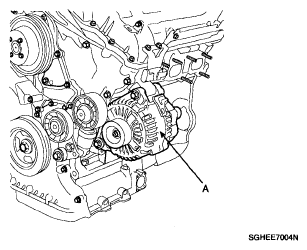

Fig 3: Identifying Alternator
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
