Monitor Scan Tool Data

Connect scan tool to data link connector (DLC).
Engine "ON".
Monitor the "OIL TEMPERATURE SENSOR" parameter on the scan tool.
Specification : Increasing Gradually

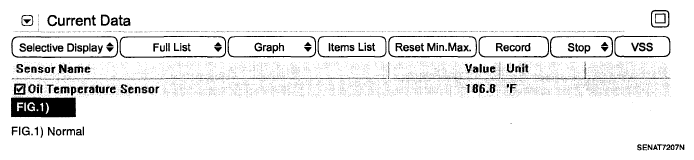

Fig 1: Scan Tool Display - "OIL TEMPERATURE SENSOR"
Courtesy of HYUNDAI MOTOR CO.
Does "OIL TEMPERATURE SENSOR" follow the reference data?
YES:
- Fault is intermittent caused by poor contact in the sensor's and/or TCM (PCM)'s connector or was repaired and TCM (PCM) memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO:
- Go to "TERMINAL AND CONNECTOR INSPECTION " procedure.
