Schematic Diagram

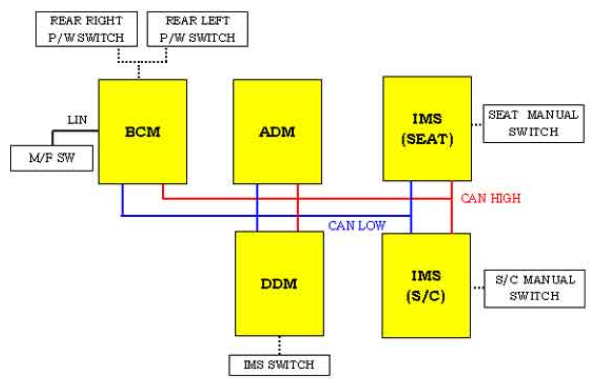

Fig 1: Driver Door Module Communication Diagram
G06803364Courtesy of HYUNDAI MOTOR CO.

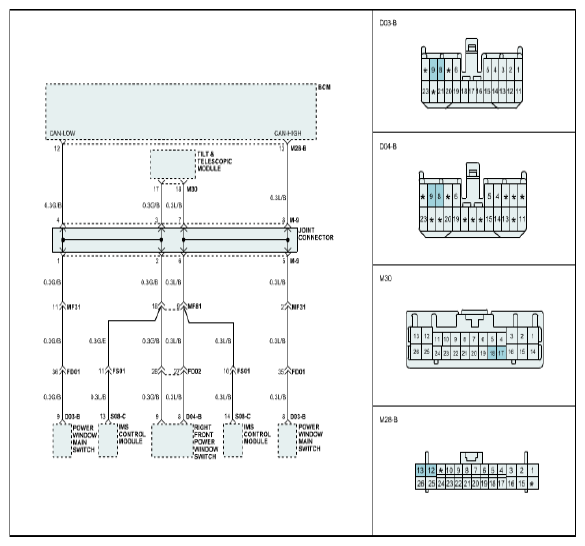

Fig 2: Driver Door Module Schematic
G06803365Courtesy of HYUNDAI MOTOR CO.

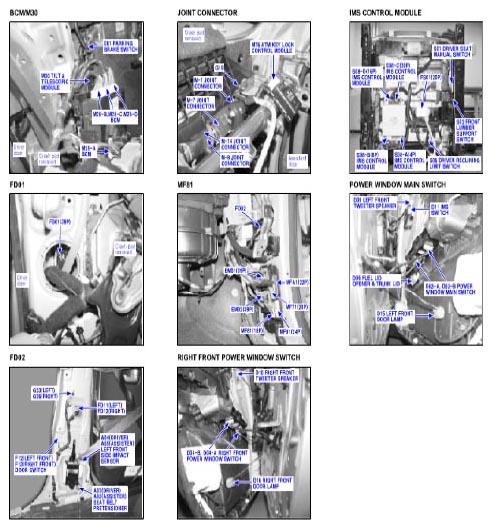

Fig 3: Identifying Power Window Main Switch Connectors
G06803366Courtesy of HYUNDAI MOTOR CO.
