Schematic Diagram

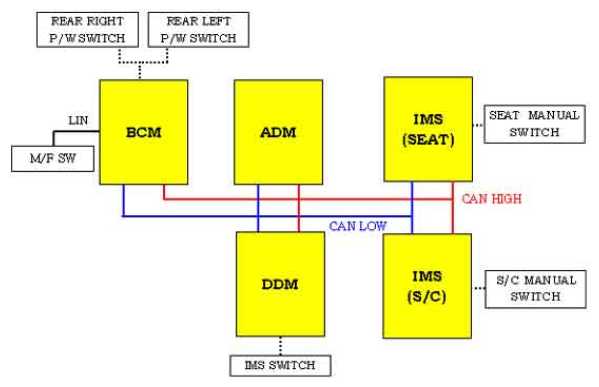

Fig 1: Driver Door Module Communication Diagram

G06803372

Courtesy of HYUNDAI MOTOR CO.

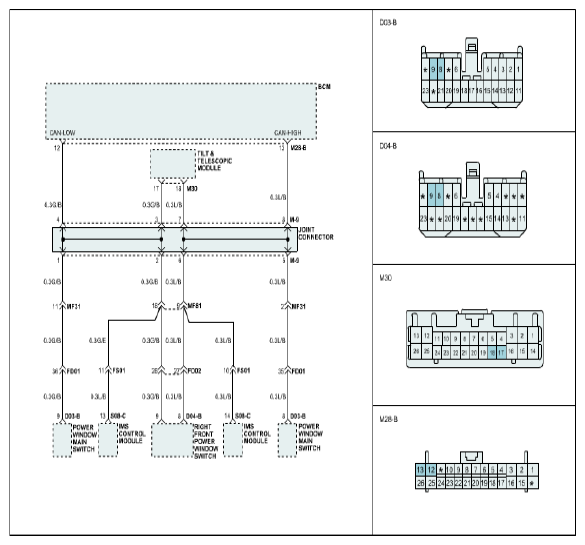

Fig 2: Driver Door Module Schematic

G06803373

Courtesy of HYUNDAI MOTOR CO.

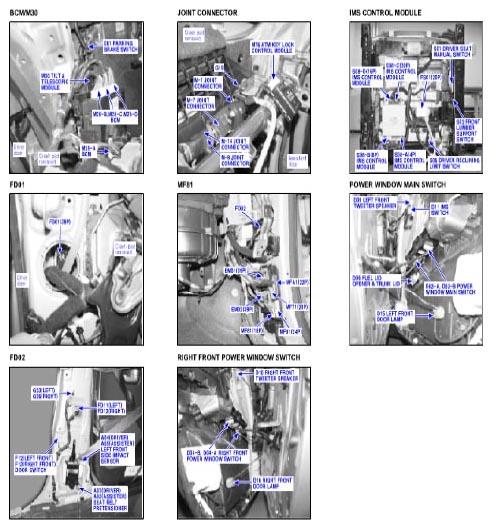

Fig 3: Identifying Power Window Main Switch Connectors

G06803374

Courtesy of HYUNDAI MOTOR CO.
